GAVR-8AH: The 8AH Brushless Generator AVR Explained
When sourcing generator replacement components for wholesale procurement, the automatic voltage regulator often gets treated as a commodity. Order the lowest-cost compatible unit, install it, move on. That works — until it does not. The gavr 8ah is one of the few universal brushless AVR models that consistently comes up in procurement conversations, and for good reason. This article covers what the gavr 8ah does, how it compares with other widely sourced models, and what wholesale and brand buyers should verify before ordering in volume.

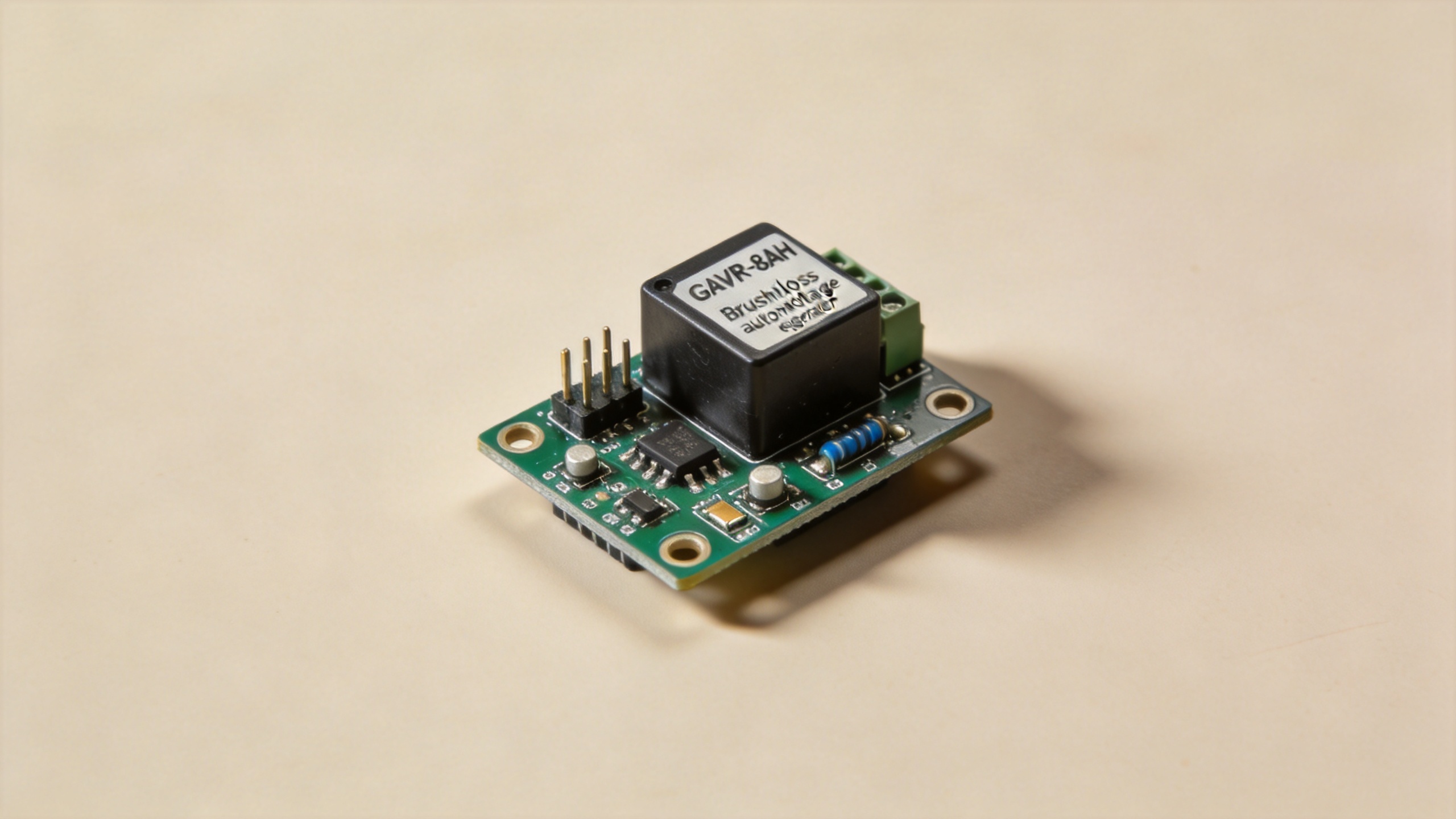

What Is the GAVR-8AH and What Does It Do?
The gavr 8ah is a universal brushless automatic voltage regulator designed for synchronous diesel generators. Understanding the avr function in diesel generator applications is essential before sourcing: the AVR maintains stable AC output voltage by regulating the excitation current fed to the generator's rotor field winding. Without a functioning AVR, generator output voltage fluctuates with changing loads, potentially damaging sensitive equipment or causing frequency instability.
The gavr 8ah forms part of the excitation system. It senses the generator's output voltage, compares it against a reference, and adjusts the DC excitation current to compensate. This closed-loop regulation is precisely the automatic voltage regulator of ac generator design that separates modern brushless systems from manual potentiometer-based voltage control found in older configurations.
Key characteristics that define the gavr 8ah within the brushless AVR category:
- Designed for brushless (rotating rectifier) type alternators, requiring no external excitation source
- Universal compatibility across a wide range of genset configurations
- Compact board form factor, suitable as a drop-in replacement in most AVR compartments
- Available in transparent conformal coating variant, allowing visual inspection of board condition
Key Technical Specifications
Before sourcing any avr card for diesel generators, verifying the electrical parameters against your generator's excitation requirements is the first step. For the gavr 8ah, the core specifications that determine compatibility are:
| Parameter | GAVR-8AH Value |
|---|---|
| Sensing Input Voltage | 110 / 220 / 400 VAC (1-phase, 2-wire) |
| Power Input Voltage | 100–260 VAC, single phase |
| DC Output Voltage | Max 90 VDC at 240 VAC input |
| Continuous Current Output | 8A |
| Intermittent Current Output | 10A (up to 10 seconds) |
| Excitation Resistance Range | 10–100 Ω |
| Operating Temperature | –40°C to +60°C |
| Applicable Generator Type | Brushless, 220/380 VAC, up to approx. 100 kW |
The 8A continuous output rating defines the upper boundary of the excitation field load the gavr 8ah can sustain. For a generator avr 5.5 kw application, this is well within the operating range. Smaller generators in this power class typically require less than 2–3A of excitation current. The gavr 8ah's headroom makes it a practical choice across light-duty and mid-range diesel gensets.
How the GAVR-8AH Compares to Other Common AVR Models
Wholesale buyers often source across multiple AVR models to serve different generator configurations. Understanding where the gavr 8ah fits relative to named brand models avoids specification mismatches that create return complications.
SX460 and AS440 (Stamford/Cummins): These are application-specific models designed for Stamford alternators. The SX460 is now obsolete and replaced by the AS440, which accepts a 10–160V AC sensing input. Both are brand-tied and not designed as universal replacements. The gavr 8ah is engineered as a cross-brand universal unit, giving it broader applicability in mixed-fleet service environments.
SX440: Designed for Stamford S4 series alternators with a narrower sensing input range. For sourcing specifically for Cummins fleet maintenance, the AS440 is the technically correct choice. For general-purpose or multi-brand stockpiling, the gavr 8ah offers flexibility without the brand premium.
R120 and R450: Leroy-Somer-associated models common in European and African generator markets. They have distinct sensing and output characteristics and are not interchangeable with the gavr 8ah without confirming alternator specifications first.
For distributors who service a range of Chinese-built or generic brushless generators, the gavr 8ah is one of the most cost-efficient universal options with a well-documented specification set.
What Wholesale and Brand Buyers Should Evaluate Before Ordering at Scale
The compatibility issue that trips up first-time buyers is voltage rating mismatch. A common mistake is ordering a gavr 8ah configured for 220V sensing when the alternator's auxiliary winding outputs 400V, or vice versa. The sensing input voltage must match what the alternator winding delivers, not the generator's output terminal voltage. This is especially important when the gavr 8ah is being used as an avr card for diesel generators replacing an older or brand-specific unit.
For B2B buyers building product lines or stocking wholesale inventory, three dimensions matter beyond compatibility:
- Excitation resistance range verification: The 10–100Ω range of the gavr 8ah accommodates most brushless generator field windings, but confirm the target alternator's field winding resistance before committing to volume. Exceeding the resistance range causes regulation instability; going below the minimum risks overload.
- Service life under thermal stress: The –40°C to +60°C operating range suits most tropical and industrial environments. Buyers for high-ambient-temperature applications should confirm PCB conformal coating grade matches site conditions.
- Replacement cost analysis: Understanding the avr function in diesel generator systems helps buyers appreciate why the gavr 8ah is worth stocking as a service part. AVR failure is one of the most common causes of generator downtime, and having the correct automatic voltage regulator of ac generator systems available eliminates sourcing delays during outages.
Populace Electronic Co., Ltd. supplies the gavr 8ah and compatible universal AVR models through a direct manufacturer channel, reducing the layered pricing typical of trading company sourcing. The Universal Generator AVR Gavr 8A from the Populace product line provides verified product documentation for B2B sourcing. For higher-current applications, the GAVR-20A extends the current output to 20A. Buyers needing an intermediate option can also evaluate the GAVR-12A.
Installation Wiring and Common Fault-Finding
The gavr 8ah wiring follows the standard configuration for brushless generator AVRs. The sensing input terminals connect to the generator's auxiliary winding — not the output terminals directly — to provide the voltage feedback signal. The DC output terminals connect to the exciter field. Stability and voltage adjustment trimmers allow fine-tuning after installation.
Installation points that reduce call-backs when using an avr card for diesel generators:
- Verify that sensing input voltage tap matches the alternator's auxiliary winding output before powering up. Incorrect sensing voltage is the most common reason a newly installed gavr 8ah fails to regulate correctly.
- Ensure the exciter field winding resistance falls within the 10–100Ω range. A resistance measurement before installation identifies mismatches before they become problems.
- Use the stability trimmer conservatively on first startup, adjusting in small increments and allowing the generator to stabilize between changes to avoid hunting.
Common fault symptoms and likely causes:
- No output voltage: Check gavr 8ah sensing input connections, confirm power input to board, verify exciter field winding circuit is intact.
- Output voltage too high and not adjustable: Often indicates a failed internal component or incorrect sensing input — confirm sensing voltage level.
- Voltage hunting: Usually a stability trimmer setting issue; reduce setting slightly and retest under load.
- Intermittent dropout under load: May indicate excitation current demand exceeds the 8A continuous rating — check generator field winding characteristics and consider the GAVR-12A or GAVR-20A for higher-demand applications.
Summary
The gavr 8ah is a well-specified universal brushless AVR for mid-range diesel generators running on 220/380VAC systems up to approximately 100kW. Its broad sensing input range, wide operating temperature, and manageable excitation resistance range make it a practical stocking choice for distributors managing mixed generator fleets. For generator avr 5.5 kw through mid-range applications, the gavr 8ah offers a documented, cost-effective option for buyers who need a reliable automatic voltage regulator of ac generator systems without brand-specific constraints.
