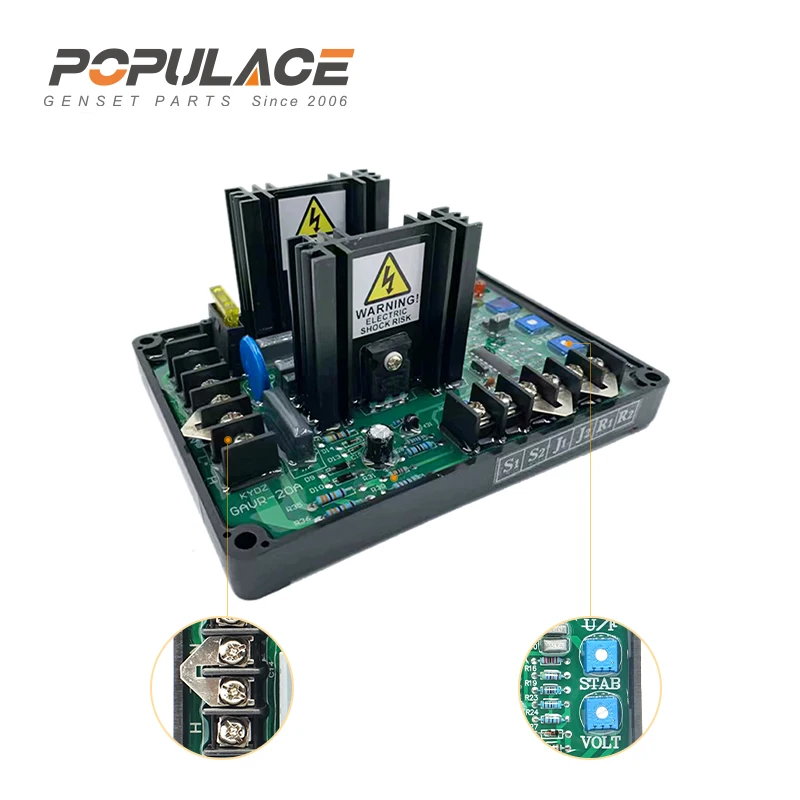

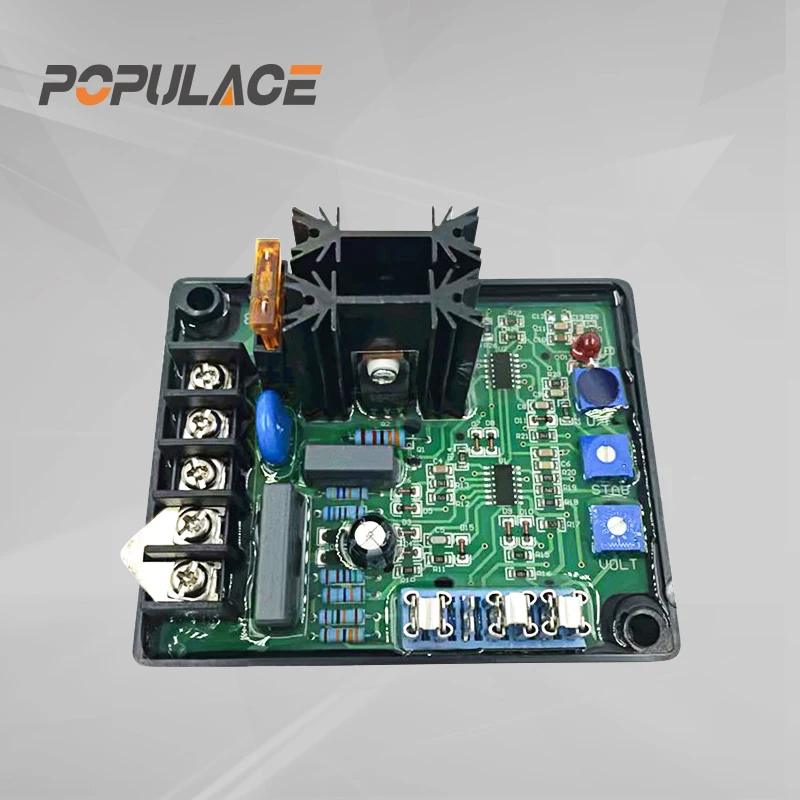

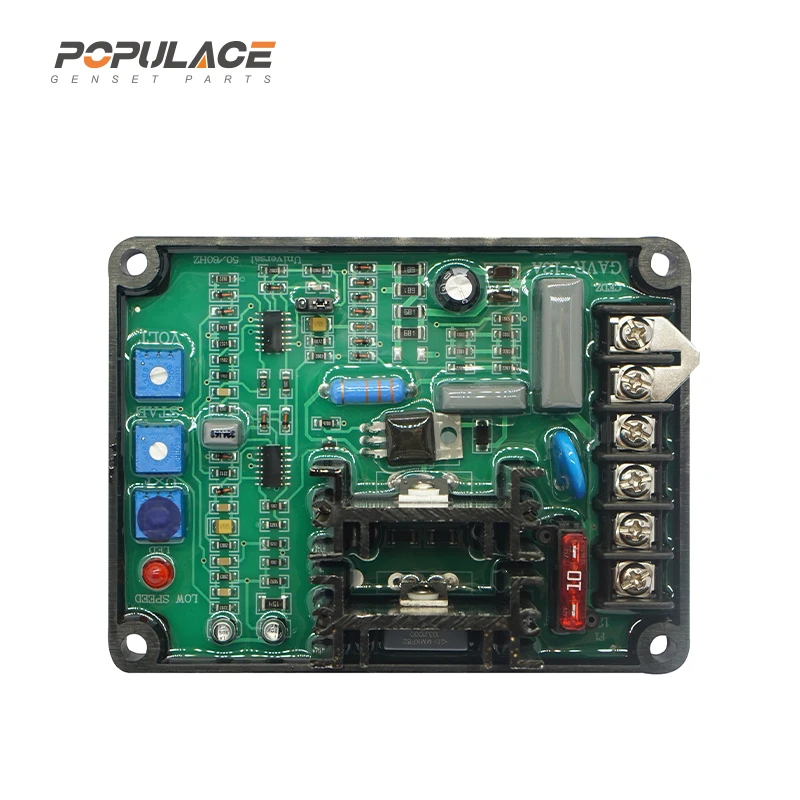

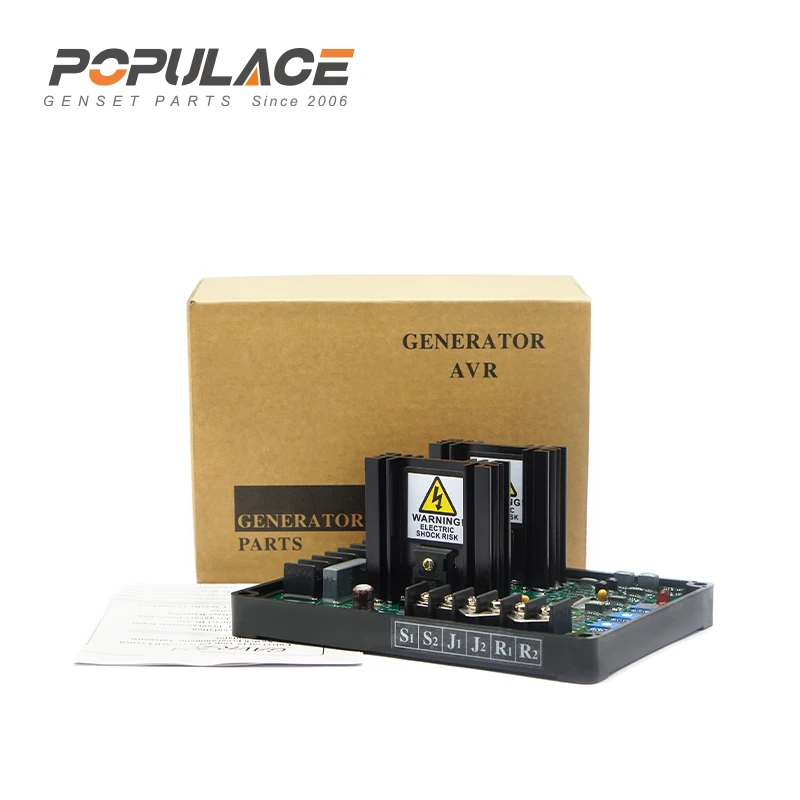

The POPULACE GAVR-20A automatic voltage regulator is a universal brushless generator AVR rated at 20A continuous excitation output, designed as a direct compatible replacement for the VISION Series GAVR-20A. With jumper-selectable 120V or 240V sensing input and 50/60Hz frequency selection, the GAVR-20A covers a wide range of brushless generator sets across global markets. Voltage regulation within ±1%, soft-start voltage ramping, and under-frequency roll-off protection make the GAVR-20A a dependable excitation control unit for commercial and industrial generator applications. POPULACE supplies the GAVR-20A direct from Xiamen with a 1-year factory warranty.

Brushless generator sets depend on an automatic voltage regulator to keep output voltage stable as load conditions change. The GAVR-20A brushless generator AVR handles this through phase-controlled thyristor excitation regulation — sensing generator output voltage and adjusting field current to hold output within ±1% under normal load variations. This regulation accuracy is what commercial and industrial generator applications require to protect connected equipment from voltage swings during load transfer and sudden load changes.

The GAVR-20A automatic voltage regulator accepts sensing input at 220/400Vac (170–270Vac operating range, 1 phase, 2 wires), with jumper-selectable 50Hz or 60Hz frequency. This makes the generator AVR GAVR-20A a single-unit solution for distributors serving both 50Hz and 60Hz markets without maintaining separate inventory. The GAVR-20A delivers continuous 20A excitation output with a maximum output voltage of 95Vdc at 240Vac input — sufficient for larger brushless generator sets in the 100kW to 500kW power range where standard 8A AVR units are undersized for the excitation demand.

The GAVR-20A genset voltage regulator is a compatible replacement for the VISION Series GAVR-20A, sharing the same electrical interface and terminal layout. Service workshops managing VISION Series generator sets can stock the POPULACE GAVR-20A as a direct field replacement without circuit modification.

Voltage Regulation Within ±1%: The GAVR-20A automatic voltage regulator holds generator output voltage within ±1% under normal load changes, meeting the stability requirements of sensitive commercial and industrial equipment connected to brushless generator sets in standby and prime power applications.

Jumper-Selectable 120V / 240V Sensing: The GAVR-20A generator AVR supports sensing input selection between 120Vac and 240Vac via jumper, allowing a single GAVR-20A unit to cover generator sets across different regional voltage configurations without requiring hardware changes at installation.

50/60Hz Frequency Selection: The GAVR-20A brushless generator AVR includes jumper-selectable 50Hz or 60Hz operation, enabling the GAVR-20A to serve both global frequency markets from a single stocked unit — a practical advantage for distributors managing mixed-frequency generator service territories.

Soft Start Voltage Ramping: The GAVR-20A genset voltage regulator ramps generator output voltage up gradually from startup, reducing inrush stress on the excitation winding and connected load equipment during each generator start cycle.

Under-Frequency Roll-Off with LED Indicator: The GAVR-20A automatic voltage regulator includes built-in under-frequency protection that reduces field current when engine speed falls below the rated frequency threshold, with an LED indicator giving visible feedback on the GAVR-20A protection state in the field.

The GAVR-20A automatic voltage regulator's 20A continuous excitation output positions it above the standard 8A class AVR units for applications where larger brushless generators require sustained higher field current. Generator sets in the 100kW–500kW range commonly draw excitation currents in the 15–25A band during loaded operation. Fitting an undersized AVR in this application leads to excitation winding overheating and premature regulator failure. The GAVR-20A genset voltage regulator is rated for these applications, delivering 20A continuous with a maximum output of 95Vdc at 240Vac input.

The GAVR-20A brushless generator AVR's jumper-configurable sensing (120V or 240V) and frequency (50Hz or 60Hz) reduce the stocking complexity for distributors covering mixed-voltage and mixed-frequency generator markets. One GAVR-20A unit covers the full configuration matrix for VISION Series replacement applications across global service territories — without maintaining separate part numbers per region.

The POPULACE GAVR-20A generator AVR has been validated as a compatible replacement for the VISION Series, with the same electrical interface. This replaceability is especially valuable for service operations managing large VISION Series installed bases, where sourcing a verified GAVR-20A replacement at factory-direct pricing keeps parts cost in check across volume service requirements. POPULACE has manufactured generator AVR components since 2006, and each GAVR-20A unit is tested before shipment.

The POPULACE GAVR-20A brushless generator AVR suits a range of generator and power system applications:

VISION Series Generator Replacement: The GAVR-20A is a direct compatible replacement for the VISION Series GAVR-20A, serving the established installed base of VISION Series brushless generator sets in rental fleets, industrial facilities, and commercial standby power applications globally.

Large Brushless Diesel Generator Sets (100kW–500kW): The GAVR-20A generator AVR's 20A continuous output covers the excitation requirements of larger brushless generator sets where standard 8A units cannot sustain the required field current under load. The GAVR-20A automatic voltage regulator handles this power tier reliably within its rated output specification.

Commercial and Industrial Standby Power: Hospitals, data centers, and utility facilities using large brushless generator sets for critical standby power need a GAVR-20A genset voltage regulator that holds stable output through full load transfer events and sustained running under heavy load.

Global 50Hz and 60Hz Generator Markets: The GAVR-20A brushless generator AVR's jumper-selectable frequency makes it a practical single-SKU item for importers and distributors supplying generator parts across both 50Hz and 60Hz markets — reducing the number of GAVR-20A part numbers needed to cover global service demand.

For generator parts distributors and service workshops, the GAVR-20A automatic voltage regulator addresses the replacement market for VISION Series GAVR-20A units — a well-defined segment with steady demand from the large installed base of compatible brushless generator sets in operation globally. The GAVR-20A generator AVR's configurable sensing and frequency reduce the SKUs needed to cover mixed-market service territories. POPULACE supplies the GAVR-20A genset voltage regulator with 2–3 day lead times from stocked inventory and 3–7 day lead times for production orders. Samples are available for pre-order testing, and the 1-year factory warranty keeps GAVR-20A after-sales handling straightforward for distributors.

Q1: Is the GAVR-20A compatible with VISION Series generator sets?

The POPULACE GAVR-20A automatic voltage regulator is designed as a compatible replacement for the VISION Series GAVR-20A, with the same electrical interface. It fits brushless generator sets that originally used the VISION Series GAVR-20A AVR, making the GAVR-20A a direct field replacement without circuit modification.

Q2: What sensing voltages does the GAVR-20A support?

The GAVR-20A generator AVR supports jumper-selectable sensing at 120Vac or 240Vac (operating range 170–270Vac). Both options are covered by a single GAVR-20A unit, confirmed by jumper position before installation.

Q3: What is the output current of the GAVR-20A brushless generator AVR?

The GAVR-20A genset voltage regulator delivers continuous 20A excitation output, with a maximum output voltage of 95Vdc at 240Vac input. This output rating suits brushless generator sets in the 100kW–500kW range where standard 8A AVR units are insufficient.

Q4: How long is delivery for the GAVR-20A?

Stocked GAVR-20A orders ship within 2–3 days after payment confirmation. Production volumes take approximately 3–7 days. POPULACE ships the GAVR-20A via FedEx, DHL, UPS, TNT, and Aramex, or free to your forwarder's warehouse in China.
