Generator Controller

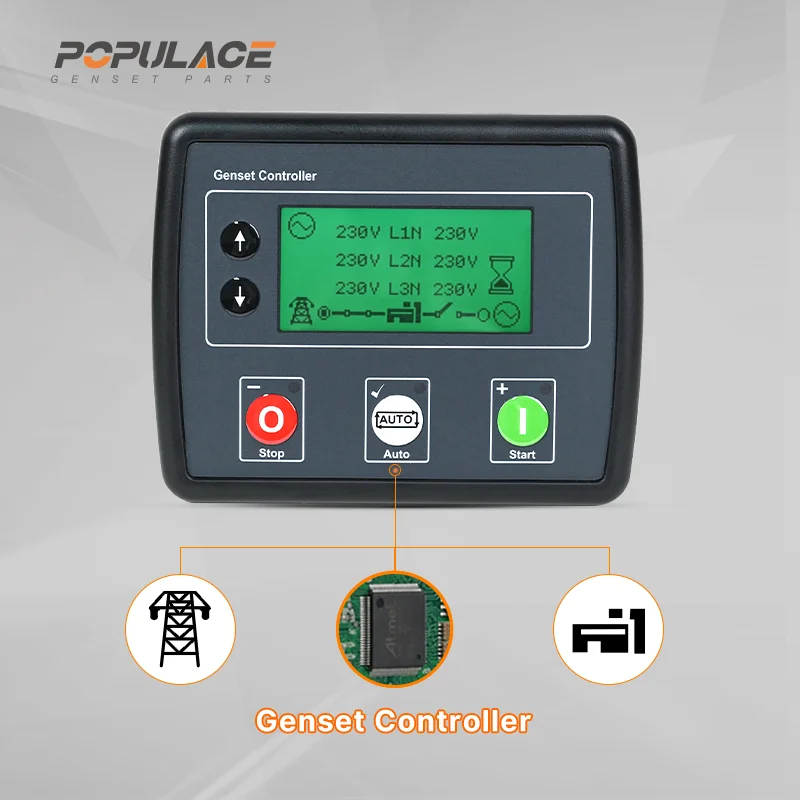

The DSE4520 controller is a compact Auto Mains Failure module that delivers fully automatic mains failure detection, engine start/stop sequencing, and load transfer management in a single 140mm × 113mm × 43mm industrial panel-mount unit, requiring no manual intervention from mains failure through generator run and retransfer to cooldown shutdown. Configurable as both an AMF module and a standalone auto start controller from one part number, the DSE4520 controller accepts 8V to 35V DC and senses mains and generator voltages from 15V to 415V across a 3.5–75Hz frequency range, covering both 12V and 24V generator battery systems without additional conditioning hardware. A magnetic pick-up input provides direct engine speed sensing for reliable cranking confirmation on diesel platforms where AC sensing alone is less accurate at low RPM, while separate fuel, start, relay, and auxiliary output channels simplify panel wiring compared to multi-relay discrete control alternatives. Panel builders, generator OEM assemblers, and telecom and commercial standby power operators across healthcare, data center, and industrial backup applications specify the DSE4520 controller for its proven reliability and dual-mode flexibility that keeps procurement and installation efficient across mixed project types.

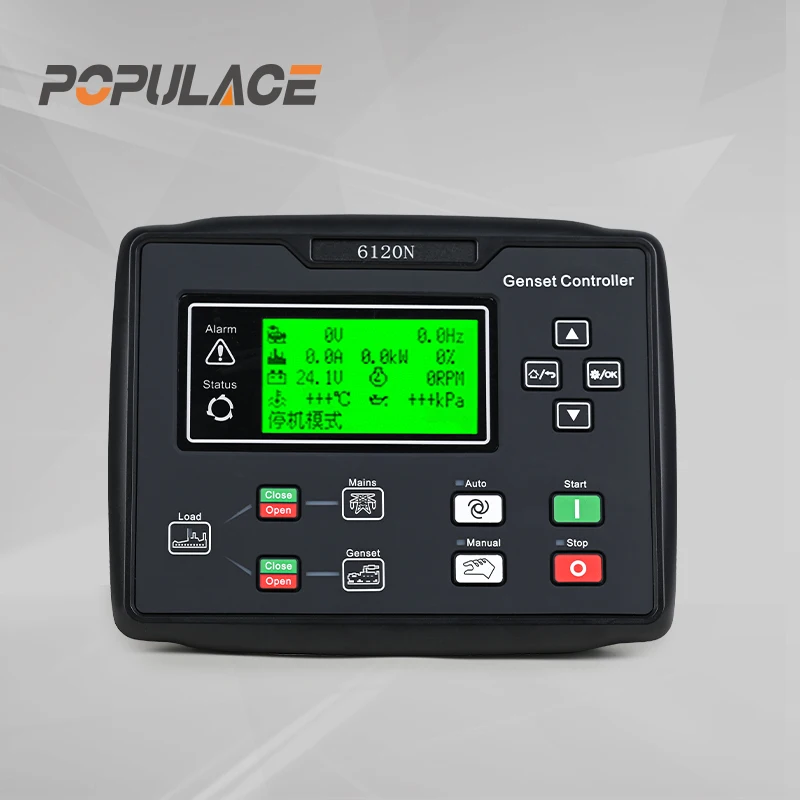

The HGM6120N controller is an intelligent Auto Mains Failure module for single diesel generator sets, automatically handling the complete power management sequence — from mains failure detection through engine start, load transfer, and retransfer to utility — without requiring manual intervention at any stage, making it a practical choice for remote installations, unmanned facilities, and any application where rapid automatic power restoration is operationally critical. Configurable alarm thresholds, control timers, and flexible inputs and outputs allow panel engineers to adapt the HGM6120N controller to diverse installation requirements, while dual front-panel key and PC software configuration support both workshop programming and on-site parameter adjustment without component replacement. A back-lit LCD display presents real-time voltage, frequency, and alarm status, giving operators and service teams clear system visibility in low-light panel environments. Generator panel builders, system integrators, and generator OEM manufacturers specify the HGM6120N controller for its broad diesel engine compatibility — covering both standard and electronic management systems across 50Hz and 60Hz platforms — and its proven durability across commercial, data center, healthcare, industrial, and telecom backup power installations worldwide.

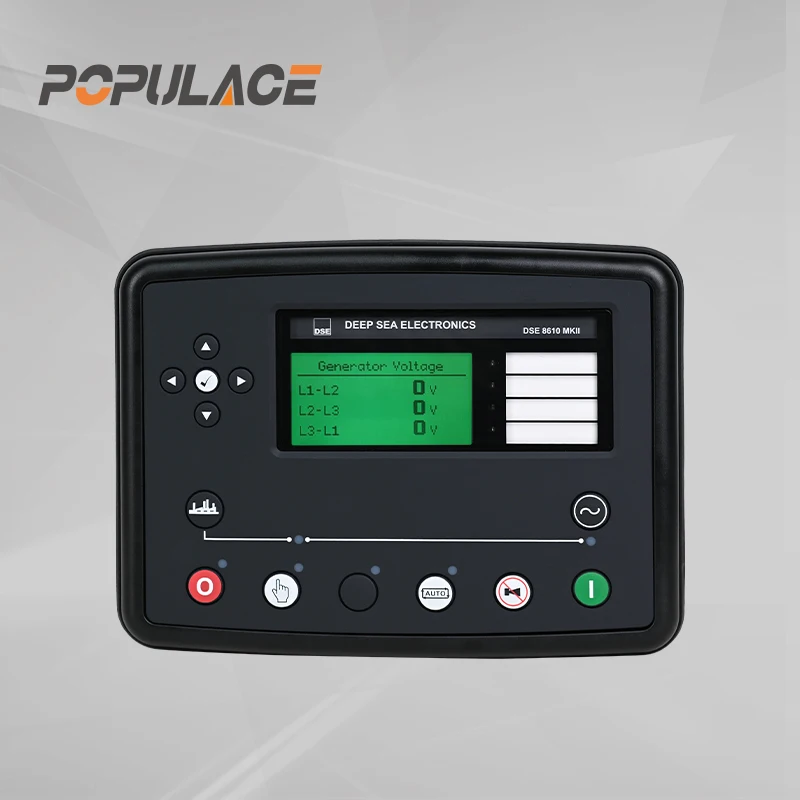

The DSE8610 module is a single-unit synchronising, load sharing, and auto start control platform for grid-type parallel diesel generator applications, accepting 8V to 35V DC supply and processing generator signals from 15V to 333V AC across 3.5Hz to 75Hz — covering 50Hz and 60Hz systems globally in one compact 98mm × 79mm × 40mm panel-mount enclosure that fits a standard 80mm × 68mm cutout. Integrated fully isolated governor control outputs (0V–10V gain, ±10V offset DC) protect control electronics from common-mode noise in generator environments, while 15A fuel and start outputs plus configurable auxiliary relay and DC channels give panel builders extensive I/O flexibility without additional external relay modules. The DSE8610 module simultaneous management of synchronising, load distribution, voltage regulation, and frequency control reduces panel component count and wiring complexity compared to multi-device installations, delivering tighter frequency regulation during load transfer for critical power quality applications. Generator system integrators, panel manufacturers, and engineering teams for data center N+1 redundancy, industrial prime power, utility peak shaving, marine, telecom, and oil and gas installations specify the DSE8610 module for its proven parallel control capability and standardized commissioning tooling across multi-site deployment programs.

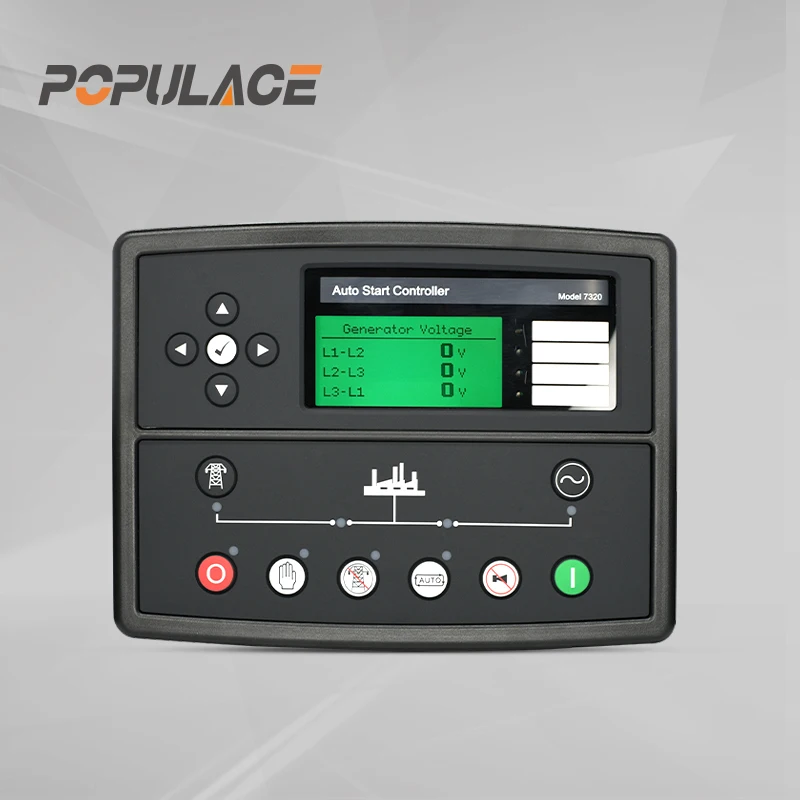

The DSE7320 MKII controller is an Auto Mains Failure genset control module that consolidates AMF logic, engine protection, metering, and load transfer switching into a single 220mm × 160mm panel-mount unit — accepting 8V to 35V DC supply for both 12V and 24V genset systems, and monitoring mains and generator voltages from 15V to 719V AC across 3.5Hz to 75Hz to cover 50Hz and 60Hz installations globally from one hardware variant. Eight output channels — 15A DC fuel and start, two 8A 250V volt-free relays for load transfer contactor control, and four configurable 2A DC auxiliary channels — give panel engineers the switching capacity for direct engine drive, contactor control, cooldown timers, and alarm annunciators without additional external relay modules. The magnetic pickup input accepts ±0.5V to 70V signals at up to 10,000Hz, supporting the full range of diesel engine flywheel tooth count configurations without additional frequency converters, and each unit is manufactured to Deep Sea Electronics specifications and pre-shipment quality inspected to confirm dimensional and functional conformance before dispatch. Generator panel builders, system integrators, genset fleet managers, and service distributors in Africa, the Middle East, Southeast Asia, and South America specify the DSE7320 MKII controller for automatic mains failure response in critical facilities, industrial prime power, commercial building backup, telecom base stations, and marine and mobile generator applications where unattended automatic transfer is operationally required.

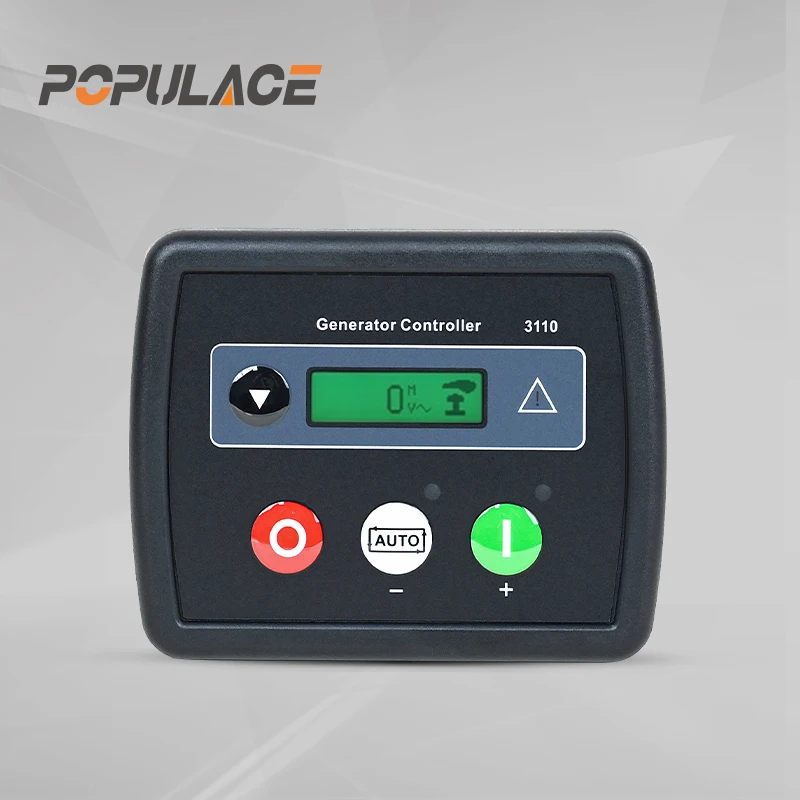

The DSE3110 controller integrates auto-test of commercial power, emergency stop, manual and automatic start, long-distance start/stop, auto-quit of start motor, and double power switch transfer in an 80 × 68mm panel-cutout unit — with nine-fault protection covering low oil pressure, charging failure, over-voltage, overload, high water temperature, over-frequency, under-frequency, start failure, and stop failure, and a front-panel LCD providing live readout of battery voltage, oil pressure, running time, frequency, voltage, current, water temperature, and engine speed simultaneously. The 3110-01 variant adds MPU input for flywheel-based engine speed sensing, extending the DSE3110 controller to diesel platforms where magnetic pickup speed monitoring is specified, while POPULACE manufactures the DSE3110 controller using components rated for the temperature ranges and vibration levels typical of industrial and commercial generator enclosures — consolidating control, protection, and instrumentation functions that older panel designs required separate devices to perform. The DSE3110 controller suits standby power installations in data centers, hospitals, and critical infrastructure, off-grid prime power generation for continuous-duty industrial facilities, construction site temporary power, compact marine panel enclosures requiring vibration tolerance, and retrofit service of aging OEM panels where modern protection and display functions are required without full panel replacement. Generator panel builders, service distributors, and repair centers in Africa, the Middle East, Southeast Asia, and South America specify the DSE3110 controller for its established DSE3110 platform compatibility and broad generator brand coverage — enabling a single stocked SKU to serve multiple generator platforms across 50Hz and 60Hz applications, supported by POPULACE-supplied wiring diagrams, terminal specifications, and connection guides for field-level customer support.

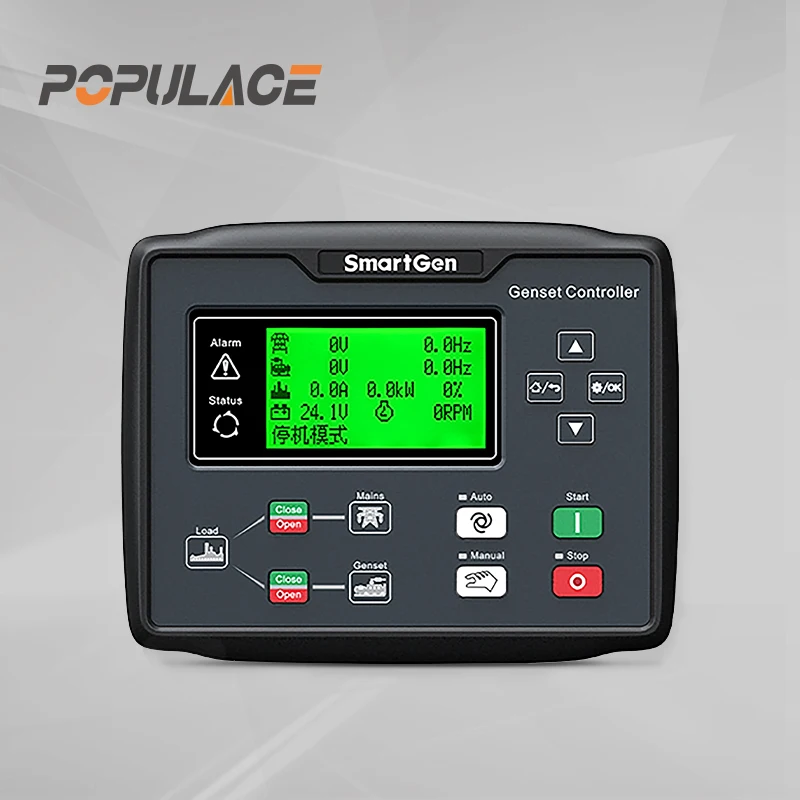

The HGM6110N genset controller is Smartgen's original ATS auto-start module for diesel generator sets, combining automatic mains failure detection, load transfer, and engine protection in a single industrial-grade panel-mount unit. Smartgen's programmable control logic automates the complete start cycle with configurable timers covering pre-heat, crank, warm-up, transfer, cool-down, and stop, giving generator OEMs, distributors, and service companies dependable generator automation across standby and prime power applications. Front-panel configuration and optional PC software enable fast on-site commissioning and parameter management without factory reprogramming, reducing setup time for data centers, hospitals, telecom base stations, and industrial facilities. The industrial-grade circuit design provides stable operation across the full ambient temperature range, with configurable alarm levels and shutdown thresholds protecting engines against low oil pressure, high coolant temperature, overspeed, and underspeed conditions.

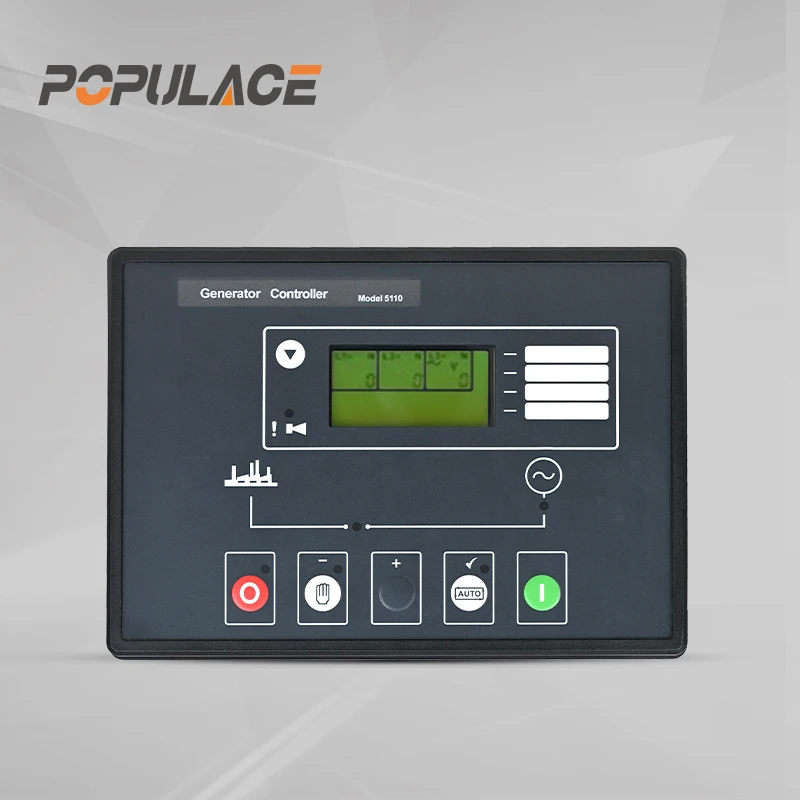

The POPULACE DSE5110 generator controller is an automatic mains failure (AMF) control module for diesel and gas generator sets. The DSE5110 monitors incoming mains supply and automatically starts the generator when utility power is unavailable, transfers load, then returns to mains and shuts down on restoration. Designed as a direct functional replacement for Deep Sea Electronics DSE 5110 and DSE 5120, with full control, protection, and data monitoring functions in a single panel-mount unit. Factory direct from Xiamen, 1-year warranty.

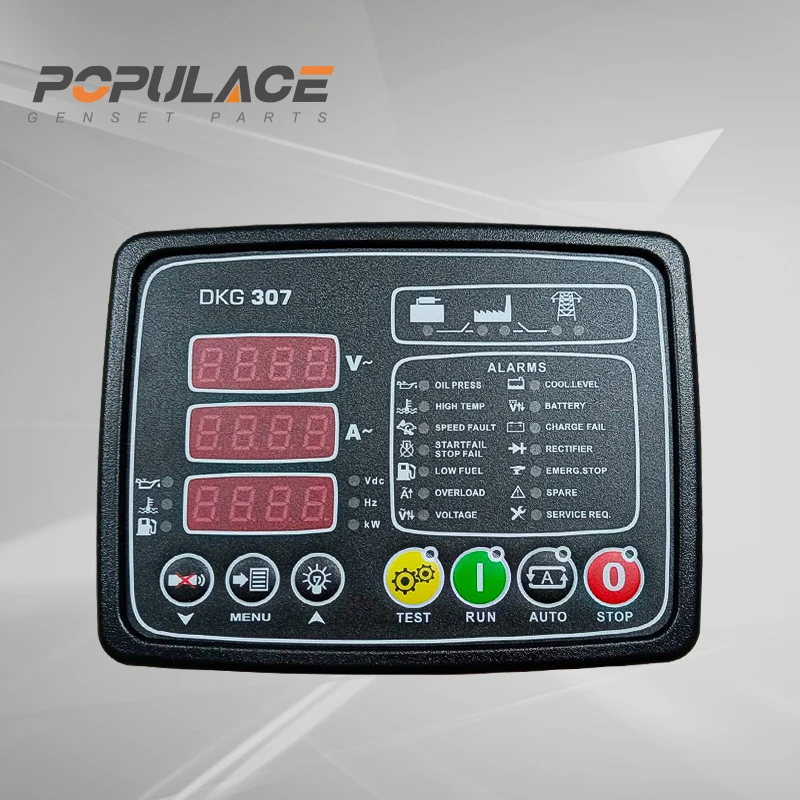

The POPULACE DKG307 is a professional AMF controller for automatic mains failure detection and standby generator management, supporting single and dual genset configurations with MPU/CANBUS protocols and external modem SMS alert capability.

The Datakom D300-MK3 features a 128×64 graphical LCD with real-time harmonic analysis and waveform display, supporting both J1939 CANBUS for modern electronic engines and MPU input for conventional mechanical setups. Its modular plug-in architecture accepts Ethernet, Wi-Fi, GSM, RS-485, and RS-232 communication modules, with an optional IP65 gasket and display heater for reliable operation down to -40°C. Designed for factories, hospitals, data centers, telecom towers, marine systems, and defense installations, it serves system integrators and generator manufacturers who need a unified AMF/ATS controller. Built-in fuel consumption tracking, load shedding logic, and dual mutual standby with equal aging management reduce total operating costs and extend generator service life.
