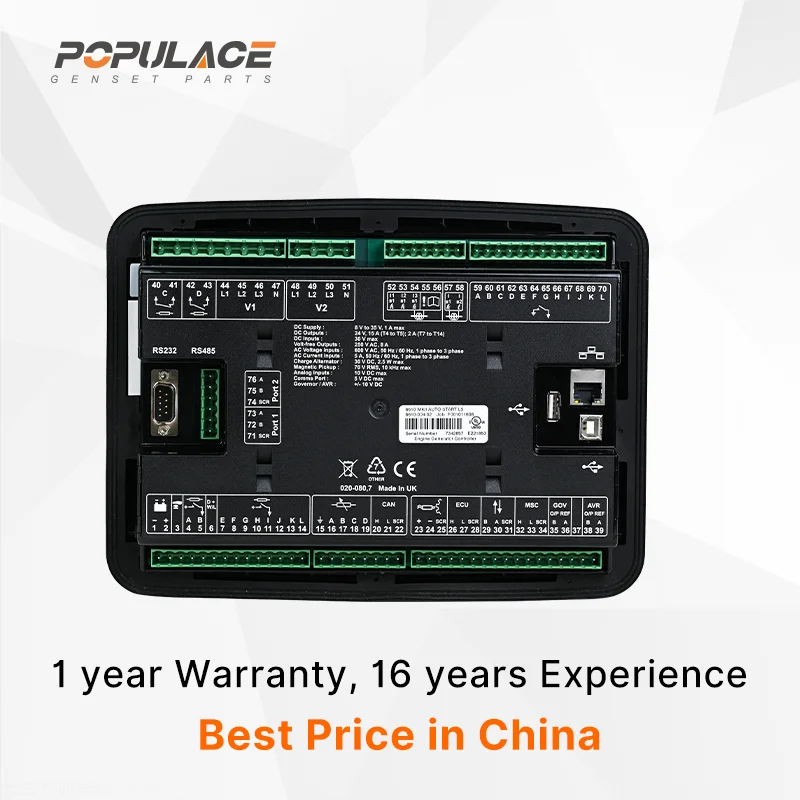

The DSE8610 module is a precision synchronising and load sharing auto start control unit designed for complex grid-type diesel generator applications. As a professional DSE8610 module controller, this unit manages multi-generator parallel operation with consistent voltage regulation and frequency synchronisation across connected generator sets. The DSE8610 module accepts a DC supply range of 8V to 35V continuous, covering both standard 12V and 24V control circuits used in generator panels worldwide. Field engineers and procurement teams across the power generation industry consistently choose the DSE8610 module for its comprehensive feature set and proven reliability in demanding parallel power installations. The DSE8610 module represents the current benchmark in synchronising control technology for industrial and commercial power systems.

The DSE8610 module features a comprehensive control architecture combining auto start management, parallel load sharing, and generator synchronising functions within one compact enclosure. This DSE8610 module processes generator voltage signals across a wide range from 15V to 333V AC (line to neutral) and handles frequencies from 3.5Hz to 75Hz, covering both 50Hz and 60Hz systems globally. The DSE8610 module built-in governor control provides a fully isolated gain voltage output of 0V-10V DC and offset voltage of +/-10V DC, ensuring interference-free speed regulation in demanding generator room environments.

The DSE8610 module delivers high-current outputs with fuel output A and start output B each rated at 15A DC at supply voltage. Auxiliary outputs C and D on the DSE8610 module provide 8A at 250V AC volt-free relay contacts, while outputs E through J supply 2A DC each, giving control panel builders extensive flexibility for ancillary equipment wiring. The DSE8610 module cranking dropout tolerance of 0V for 50ms ensures reliable engine starting performance even under marginal battery voltage conditions. The DSE8610 module compact footprint of 98mm x 79mm x 40mm installs into a standard panel cutout of 80mm x 68mm with a maximum panel thickness of 8mm.

• Wide DC supply range: The DSE8610 module operates on 8V to 35V DC continuous input voltage
• High-current control outputs: The DSE8610 module fuel and start outputs each deliver 15A DC at supply voltage
• Isolated governor control: The DSE8610 module provides fully isolated gain voltage and offset voltage outputs for noise-free speed regulation
• Broad generator voltage input: The DSE8610 module accepts 15V to 333V AC (L-N) from connected generators
• Wide frequency coverage: The DSE8610 module handles 3.5Hz to 75Hz for both 50Hz and 60Hz generator systems
• Multiple auxiliary outputs: The DSE8610 module provides configurable relay and DC auxiliary outputs for ancillary control
• Compact panel format: The DSE8610 module fits a standard 80mm x 68mm panel cutout
• Cranking dropout tolerance: The DSE8610 module survives 0V supply for 50ms during engine cranking sequences

The DSE8610 module integrates synchronising, load sharing, and auto start functions into a single control platform, reducing panel component count and wiring complexity compared to installing separate units for each function. The DSE8610 module electronic control architecture processes real-time voltage and frequency data from all connected generator sets simultaneously, applying load distribution algorithms that maintain stable parallel operation during load steps and generator switching events. This design approach makes the DSE8610 module deliver tighter frequency regulation during load transfer than multi-unit systems, supporting better power quality in critical applications.

The DSE8610 module fully isolated governor control outputs protect sensitive control electronics from common-mode noise generated in generator environments, contributing to longer service intervals and lower maintenance burden. Panel manufacturers integrate the DSE8610 module because its comprehensive I/O configuration covers generator protection, synchronising, load sharing, and monitoring within a single device, cutting panel assembly time. The DSE8610 module established track record in multi-generator grid-tie installations positions it as a reference-grade controller for demanding parallel power generation projects worldwide.

The DSE8610 module serves diverse parallel and grid-tie generator applications across multiple sectors and operational environments:

• Data center power systems: The DSE8610 module manages multi-generator parallel operation for N+1 and N+N redundancy configurations
• Industrial prime power: The DSE8610 module controls load sharing between generator sets in manufacturing and processing plants
• Utility peak shaving: The DSE8610 module enables grid-parallel generator operation for utility demand management programs
• Marine power management: The DSE8610 module synchronises onboard generator sets for seamless vessel power distribution
• Telecommunications infrastructure: The DSE8610 module provides multi-generator backup control for critical telecom sites
• Oil and gas facilities: The DSE8610 module withstands harsh industrial environments in onshore and offshore installations

Generator system integrators selecting the DSE8610 module gain a proven parallel control platform that reduces project risk and accelerates panel commissioning schedules. The DSE8610 module single-unit integration of synchronising and load sharing simplifies panel design, reduces component count, and cuts wiring labor on each installation project. Service engineers deploying the DSE8610 module across multiple sites benefit from standardized commissioning procedures and software tooling that minimize site-specific learning curves and support costs.

The DSE8610 module global supply network ensures replacement unit availability in major markets, reducing downtime exposure for critical power systems. Procurement teams consistently choose the DSE8610 module for its balance of advanced capability and competitive lifecycle cost across multi-year deployment programs. The DSE8610 module manufacturer's long-term software support and hardware compatibility commitment protect the investment value of installed control panels. In high-availability parallel power projects, the DSE8610 module is the control solution engineering teams specify and trust.

Q1: What DC supply voltage does the DSE8610 module accept?
A1: The DSE8610 module operates on a continuous DC supply of 8V to 35V, compatible with both 12V and 24V generator control circuits.

Q2: What generator voltage range is the DSE8610 module compatible with?
A2: The DSE8610 module accepts generator output voltages from 15V to 333V AC (line to neutral), covering most generator configurations worldwide.

Q3: What frequency range does the DSE8610 module handle?
A3: The DSE8610 module operates across 3.5Hz to 75Hz, accommodating both 50Hz and 60Hz diesel generator sets.

Q4: How many auxiliary outputs does the DSE8610 module provide?
A4: The DSE8610 module includes two volt-free relay outputs (C, D) at 8A/250V AC and six DC outputs (E through J) at 2A each.

Q5: Does the DSE8610 module support both synchronising and load sharing?
A5: Yes, the DSE8610 module integrates full synchronising and parallel load sharing control within a single compact unit.

Q6: What panel cutout dimensions does the DSE8610 module require?
A6: The DSE8610 module fits an 80mm x 68mm panel cutout with a maximum panel thickness of 8mm.
