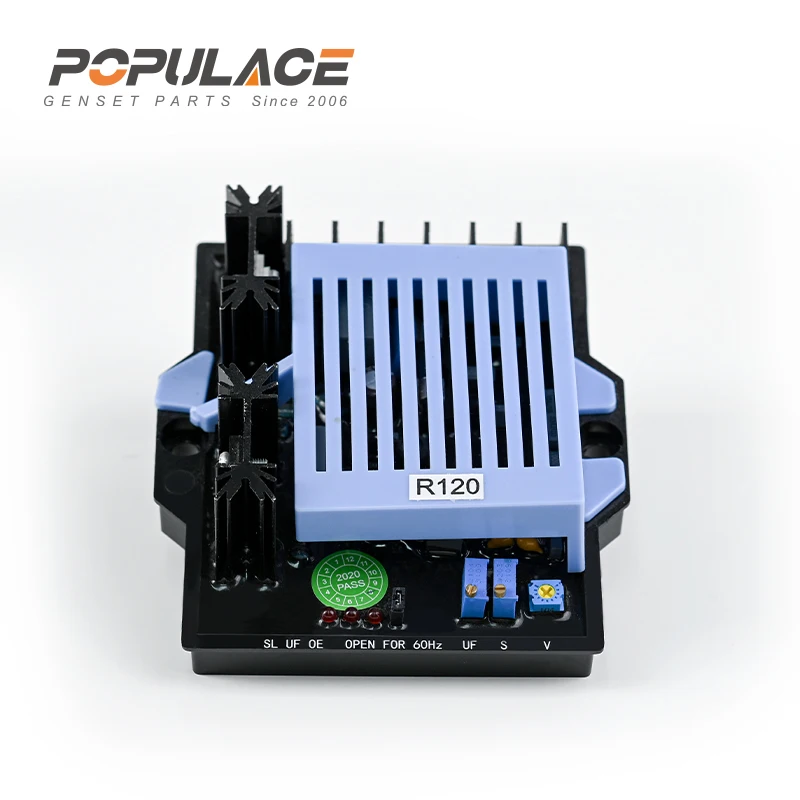

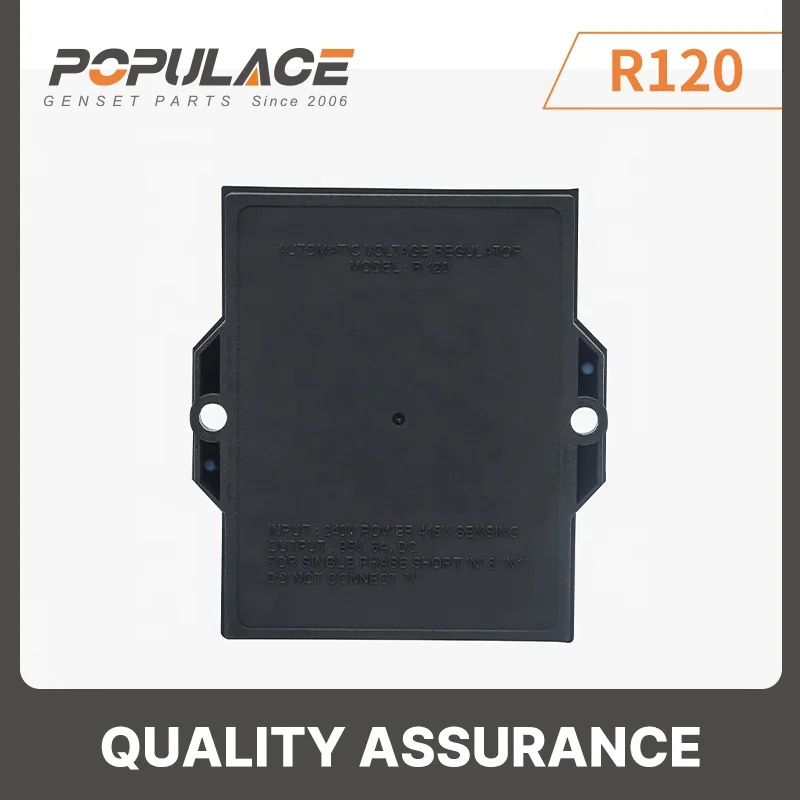

The POPULACE Generator AVR R120 is a self-excited brushless automatic voltage regulator designed as a direct compatible replacement for the Leroy Somer Series R120. With selectable sensing input at 120VAC or 240VAC and frequency selection between 50Hz and 60Hz via jumper, this generator AVR R120 fits a broad range of brushless generator sets used in both 50Hz and 60Hz markets. The R120 delivers voltage regulation within ±1% under stable engine governing, with soft-start voltage ramping and under-frequency roll-off protection built in. POPULACE supplies this generator AVR R120 directly from its Xiamen factory with a 1-year warranty on every unit.

In a brushless generator set, the automatic voltage regulator controls field excitation current to maintain stable output voltage as load conditions change. Without precise regulation, output voltage rises under light load and sags under heavy load — an unstable supply that affects sensitive connected equipment and degrades generator reliability over time.

The POPULACE R120 generator AVR operates in the self-excited brushless excitation system, sensing generator output voltage and adjusting excitation to hold output within the specified regulation band. The sensing input is jumper-selectable between 120VAC and 240VAC, allowing the same generator AVR R120 unit to fit generators sold into different regional voltage markets without hardware modifications. Frequency selection — 50Hz or 60Hz — is also jumper-configurable, making the R120 suitable for global deployment without requiring separate part numbers for each target market.

The soft-start voltage ramping feature brings generator output voltage up gradually from startup, reducing mechanical stress on the excitation system and connected load during generator run-up. The POPULACE Generator AVR R120 is a direct replacement for the Leroy Somer Series R120, sharing the same electrical interface and terminal layout. This compatibility makes the R120 automatic voltage regulator a practical stock item for generator service workshops and spare parts distributors managing Leroy Somer series sets alongside other brushless generator brands.

Voltage Regulation Within ±1%: The generator AVR R120 holds output voltage within ±1% under normal load changes (with 4% engine governing), meeting the stability requirements of sensitive industrial and commercial generator loads.

Selectable 120V / 240V Sensing Input: The R120 automatic voltage regulator supports jumper-selectable sensing at 120VAC or 240VAC, making a single unit compatible with generators across both North American and European voltage configurations.

50/60Hz Frequency Jumper Selection: The R120 generator AVR is configurable for either 50Hz or 60Hz operation via jumper, supporting global deployment from a single SKU without separate units for each regional frequency standard.

Soft Start Voltage Ramping: Output voltage ramps up gradually from generator startup, reducing inrush stress on the excitation winding and connected equipment during each generator start cycle.

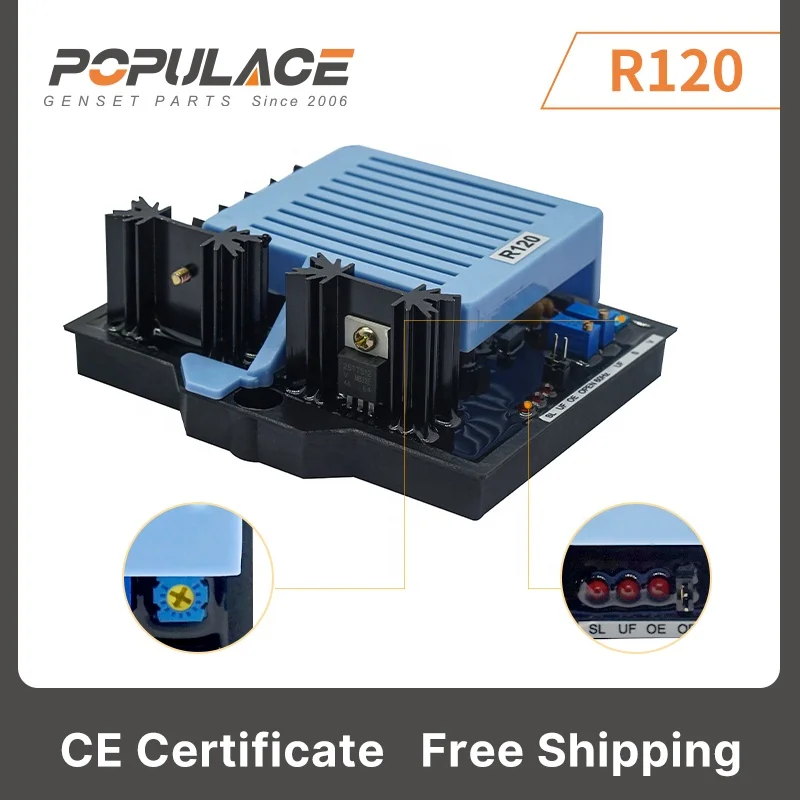

Under Frequency Roll-Off Protection with LED Indicator: Built-in under-frequency protection reduces field current when engine speed falls below the rated threshold, protecting the generator from overheating. A dedicated LED indicator provides visible feedback when under-frequency protection is active — simplifying field diagnostics without additional test equipment.

The R120 generator AVR addresses two common installation failure modes in brushless generator voltage regulation: sensing input mismatch and frequency mismatch. Both account for a meaningful share of field AVR returns in generator service operations — units that work correctly but were fitted in the wrong configuration. The jumper-selectable design of the POPULACE R120 automatic voltage regulator removes this failure path: one unit covers 120V and 240V sensing and 50Hz and 60Hz operation, with visible jumper confirmation of the active configuration before installation.

The under-frequency roll-off protection detects when engine speed drops below the rated frequency threshold — a condition that occurs during engine cranking, low-fuel situations, or overloaded operation. When triggered, the R120 generator AVR reduces field current to match the reduced engine output capacity. Without this protection, sustained full field current demand at low engine speed can stall the engine or cause excitation winding overheating. The LED indicator makes this protection state visible without test equipment, which speeds up field diagnostics in service scenarios.

The excitation output of this genset AVR R120 delivers continuous current at 8A and intermittent current at 10A within 10 seconds, covering the excitation requirements of brushless generators across the typical R120-compatible power range. POPULACE has manufactured generator AVR components since 2006, and each R120 unit undergoes voltage regulation performance testing at the factory before shipment, backed by a 1-year warranty.

The POPULACE Generator AVR R120 suits a range of brushless generator and power system applications:

Leroy Somer Series Generator Replacements: The R120 generator AVR is designed as a direct compatible replacement for the Leroy Somer R120 series, serving the large installed base of Leroy Somer brushless generator sets in rental fleets, industrial facilities, and commercial standby applications worldwide.

Diesel and Gas Generator Sets: Brushless diesel and gas generators using self-excited excitation systems in the compatible power range can use this R120 automatic voltage regulator for original equipment installation or aftermarket replacement service.

Standby Power Systems: Commercial and industrial standby generators supporting data centers, hospitals, and utilities require a generator AVR that holds output stable from the first seconds of load transfer. The R120's voltage regulation band meets these operational requirements.

Global 50Hz and 60Hz Markets: The jumper-selectable frequency configuration makes the genset AVR R120 a practical single-SKU stock item for importers and distributors supplying both 50Hz regions (Europe, Asia, Middle East, Africa) and 60Hz regions (Americas) without holding separate inventory for each market.

For generator service workshops, importers, and replacement parts distributors, the POPULACE Generator AVR R120 addresses ongoing demand from the Leroy Somer R120 replacement market — a well-established segment with steady demand from the large installed base of compatible brushless generator sets operating globally across multiple industries.

The jumper-selectable voltage and frequency configuration reduces the number of SKUs required to serve mixed-market customers. Distributors covering both 50Hz and 60Hz territories, or both 120V and 240V sensing configurations, can stock a single R120 generator AVR part number. POPULACE supplies the Generator AVR R120 with 2–3 day lead times from stocked inventory and 3–7 day lead times for production orders. Samples are available for pre-order testing, and the 1-year factory warranty with direct support reduces after-sales complexity for distributors carrying the R120 as a standard stocked replacement component.

Q1: Is the Generator AVR R120 compatible with Leroy Somer generator sets?

The POPULACE Generator AVR R120 is designed as a compatible replacement for the Leroy Somer Series R120, sharing the same electrical interface and terminal layout. It is suitable for Leroy Somer brushless generator sets that originally used the R120 AVR.

Q2: What sensing voltages does the R120 generator AVR support?

The R120 automatic voltage regulator supports jumper-selectable sensing input at 120VAC or 240VAC. Both options are covered by a single unit, with configuration set by jumper position before installation.

Q3: Can the R120 generator AVR operate on both 50Hz and 60Hz systems?

Yes. The R120 generator AVR includes jumper-selectable frequency for 50Hz or 60Hz operation, allowing the same unit to serve generators in both frequency markets without hardware changes.

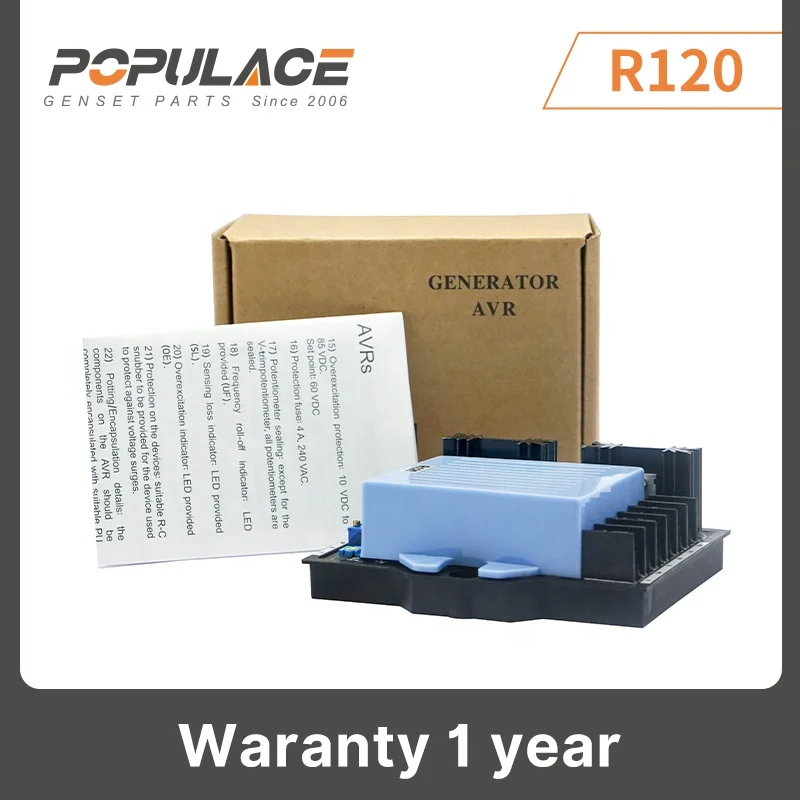

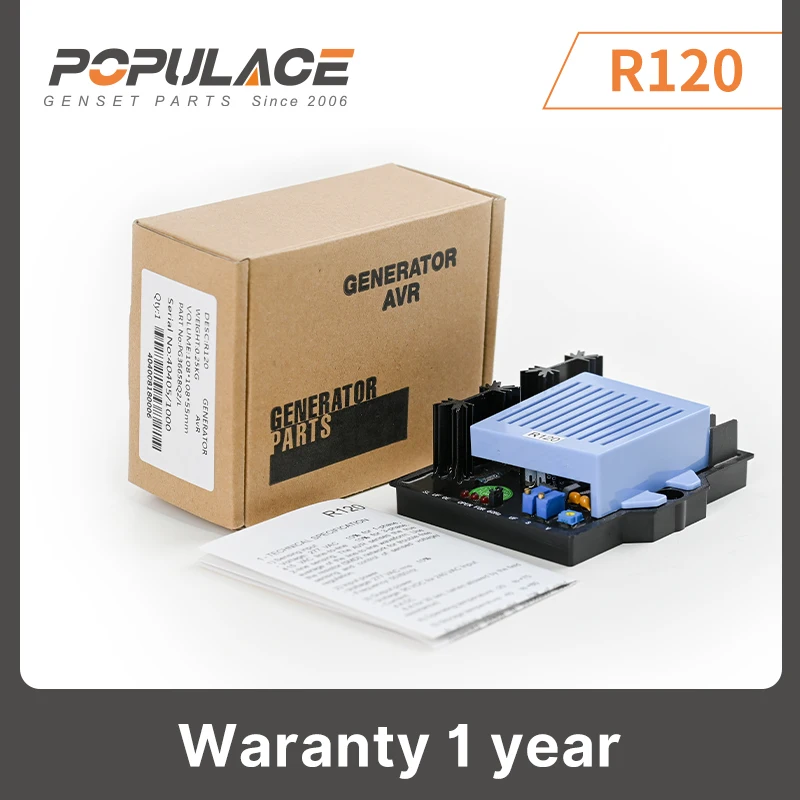

Q4: What warranty does the Generator AVR R120 carry?

Each R120 generator AVR ships with a 1-year factory warranty covering manufacturing defects. POPULACE provides replacement or repair support for qualifying warranty claims through direct factory channels.
