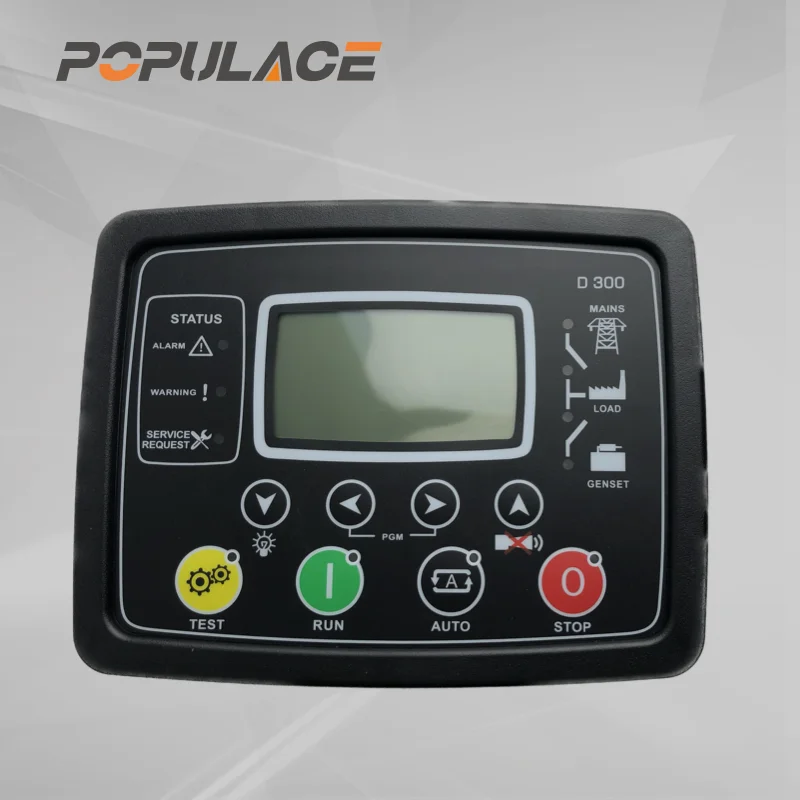

The Datakom D300-MK3 genset remote controller is a cost-effective, modular genset controller designed to deliver total control and seamless remote monitoring for modern power systems. Built with a 128x64 graphical LCD display, this D300-MK3 generator auto start control panel module LCD controller provides real-time measurement, deep engine protection, and flexible communication options. Whether you need a dependable automatic mains failure (AMF) unit or an automatic transfer switch (ATS) control module, the Datakom D300-MK3 genset remote controller ensures smooth generator operation. Equipped with internet central monitoring capability, PLC functionality, and comprehensive power analytics, this Datakom D300-MK3 genset remote controller protects your generator investment while optimizing fuel and operational costs.

Operating power generators efficiently requires intelligent control units that can adapt to harsh industrial environments and complex power topologies. The Datakom D300-MK3 genset remote controller stands out as an all-in-one generator controller engineered for single and multi-phase generator setups. From 3-phase star/delta topologies to single-phase systems, this D300-MK3 generator auto start control panel module LCD controller manages electrical parameters with precise accuracy.

Designed with modular flexibility, the Datakom D300-MK3 genset remote controller supports various plug-in modules including Ethernet, Wi-Fi, RS-485, RS-232, and 2G/3G/4G GSM modems. These expansion options turn your standalone generator into a connected device ready for cloud-based monitoring. Users can track genset status, run diagnostic checks, send SMS notifications, and adjust operational schedules remotely via the free Rainbow Plus software.

Security and customizability are embedded in its core design. With a 3-level configuration password, 400 detailed event logs with full snapshot data, and customizable digital inputs and outputs, the Datakom D300-MK3 genset remote controller gives plant managers complete visibility over their power assets.

Comprehensive Monitoring: Clear 128x64 graphical LCD showing V & I waveforms, harmonic analysis, engine speed, and battery health.

Flexible Application Topologies: Supports 3-phase 4-wire, 3-phase 3-wire, 2-phase, and 1-phase system configurations.

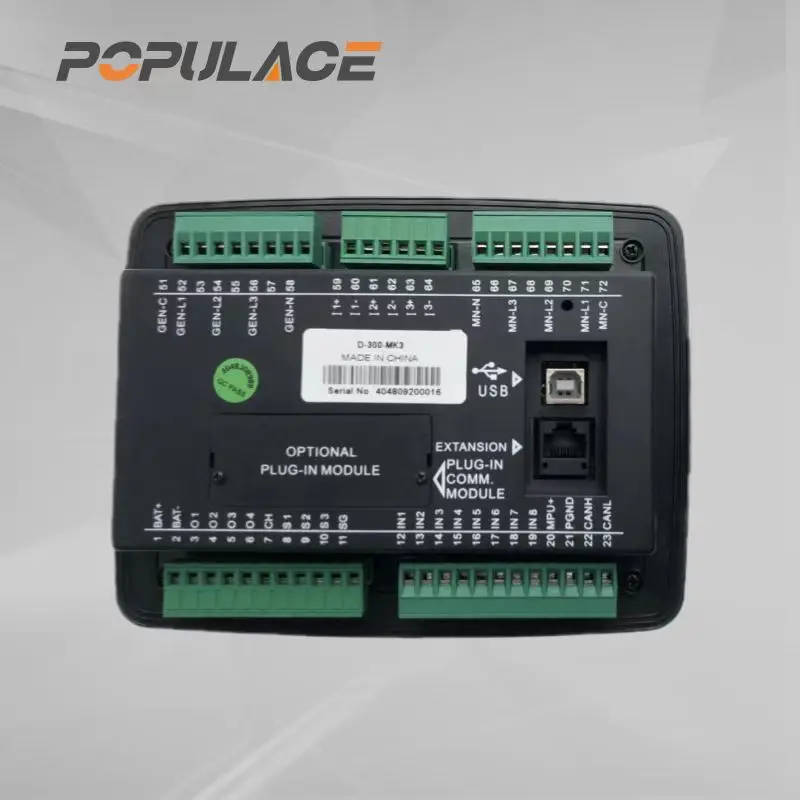

Plug-in Connectivity: Modular slots for Ethernet (100Mbps), Wi-Fi (802.11 b/g/n), GSM modems (2G/3G/4G), and RS-485/RS-232 serial communication.

Advanced Engine Protection: Includes reverse power protection, overload IDMT protection, voltage/current unbalance alarms, excess power limiters, and fuel theft detection.

Dual Mutual Standby: Automatically balances engine run hours between two generators with equal aging management.

Built-in PLC Capabilities: Programmable logic functions allow customized automation workflows without requiring external hardware.

Real-time Diagnostics & Waveform Analysis: Unlike standard control panels, this D300-MK3 generator auto start control panel module LCD controller provides harmonic analysis and visual waveform graphs for voltage and current. This enables technical teams to identify electrical issues before equipment fails.

Fuel Economy & Maintenance Optimization: Integrated fuel filling counters, consumption trackers, and idle speed management lower total operational expenses. The system includes 3 configurable service alarms and multiple automatic exercisers to keep standby units ready.

Smart Power Management: Features load shedding, dummy load control, and multi-load management to prevent light-load carboning and heavy overload trips, prolonging engine longevity.

Resilient Field Deployment: Capable of operating in 400Hz military or aviation setups, combat mode support, and harsh -40°C environments, the Datakom D300-MK3 genset remote controller delivers stable performance anywhere.

Commercial & Industrial Facilities: Acts as a primary ATS and AMF unit for factories, hospitals, data centers, and office towers.

Telecom & Mobile Generators: Built-in automatic GSM geo-location and remote SMS control make it ideal for mobile emergency generator fleets and telecom tower power backup.

Off-Grid & Hybrid Power Plants: Integrates easily into solar-diesel hybrid systems, offering battery charge-run enable logic and scheduled operation modes.

Marine & Defense Systems: Supports specialized 400Hz frequencies and combat mode overrides for critical defense and marine power applications.

Investing in the Datakom D300-MK3 genset remote controller gives system integrators and generator manufacturers a competitive advantage. By unifying AMF, ATS, engine monitoring, and cloud connectivity into a single compact unit, it reduces hardware costs and panel wiring complexity.

Remote diagnostic capabilities dramatically lower field service calls and maintenance dispatch costs. End-users benefit from uninterrupted power backup, reduced fuel theft, and extended generator lifespan, ensuring a rapid return on investment (ROI) for commercial fleet managers and facility owners.

Q1: Can I monitor the Datakom D300-MK3 genset remote controller from my computer or smartphone?

Yes. With optional Ethernet, Wi-Fi, or GSM plug-in modules, you can remotely monitor generator status, receive instant SMS/email alarms, and manage settings through the free Rainbow Plus software or central web monitoring platforms.

Q2: Does this D300-MK3 generator auto start control panel module LCD controller support both electronic (CANBUS) and conventional engines?

Absolutely. It features built-in J1939 CANBUS communications for modern electronic engines as well as Magnetic Pickup (MPU) inputs for traditional mechanical engines.

Q3: How does the dual mutual standby feature work?

The controller can link two generators together to run in turns. It balances running hours equally between both units to ensure uniform wear, preventing premature failure on a single main unit.

Q4: Is the software for configuring the controller free?

Yes, Datakom provides the Rainbow Plus PC configuration software completely free of charge. You can connect via USB, RS-485, or IP networks to configure parameters and update firmware easily.
