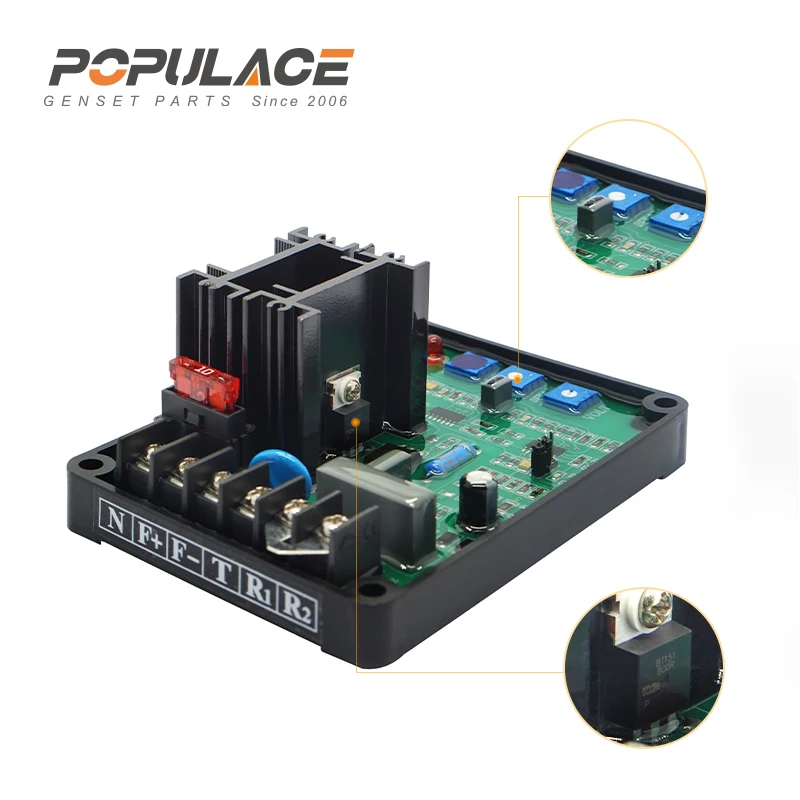

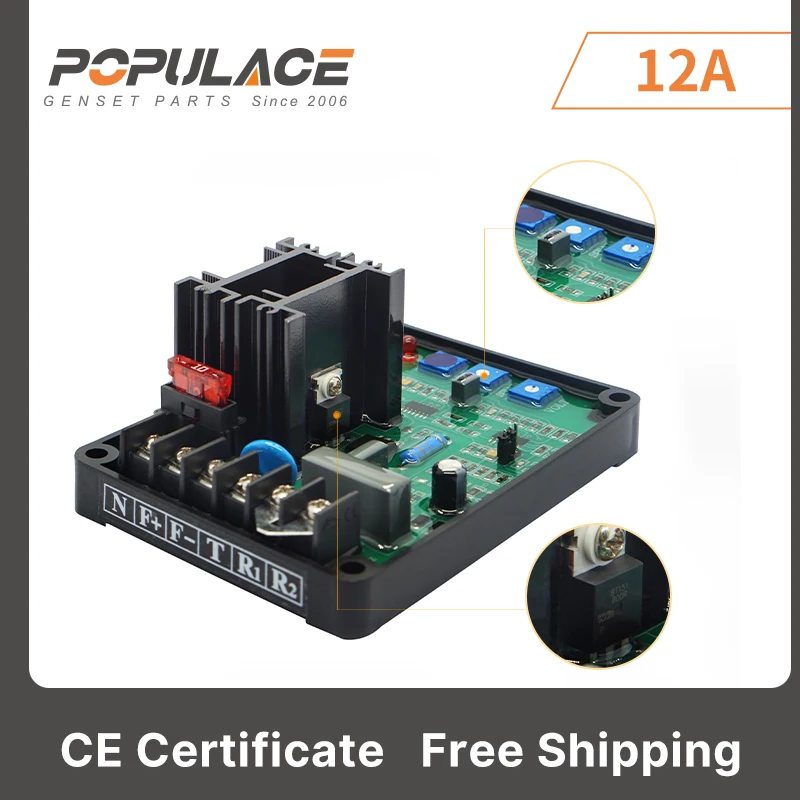

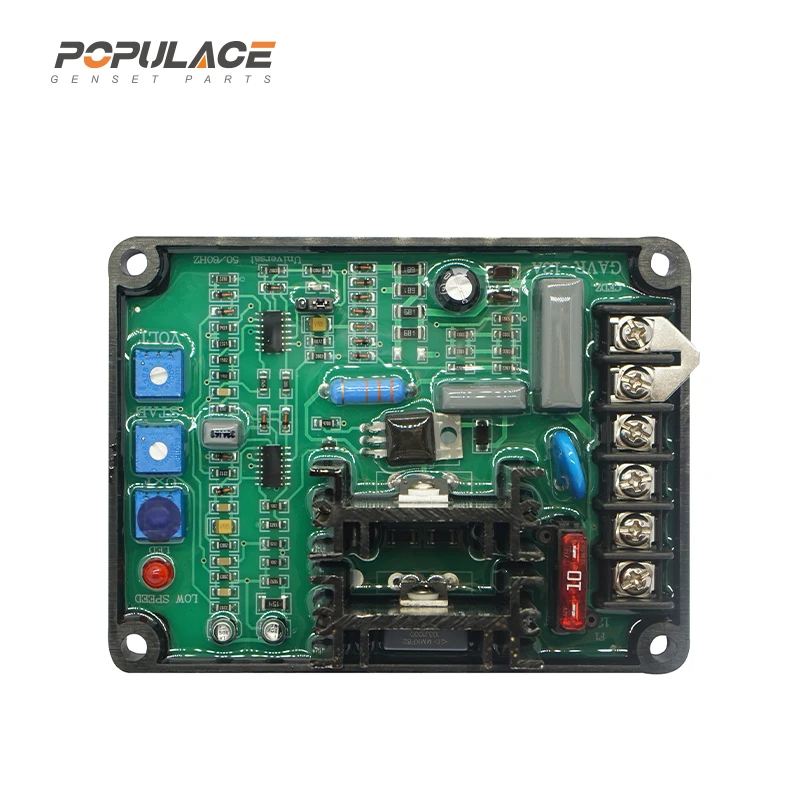

The POPULACE GAVR-12A automatic voltage regulator is a compact sealed brushless generator AVR rated for generator sets below 125kW. The GAVR-12A controls excitation current to stabilize generator output voltage within ±1% accuracy, with a 2-second soft start ramp and internal EMI suppression for clean operation in industrial environments. The GAVR-12A accepts sensing input at 180–260Vac, supports field resistance from 12–100 ohm, and delivers continuous 4A excitation output with a 7A intermittent capacity for 10 seconds. POPULACE manufactures the GAVR-12A genset spare part directly in Xiamen, with 1-year factory warranty and pre-shipment testing on every unit.

The core job of any brushless generator AVR is to read the generator's output voltage and adjust field current to hold that voltage steady under changing load. The GAVR-12A automatic voltage regulator does this through thyristor-based phase-controlled rectification — continuously sensing output and compensating with precise field current adjustment. This closed-loop regulation is what lets the GAVR-12A achieve less than ±1% regulation accuracy, even on generator sets whose engines show up to 4% governing variation across load steps.

The GAVR-12A brushless generator AVR is designed for generator sets below 125kW. With a sensing/power input range of 180–260Vac, 1 phase, 2 wire, the GAVR-12A operates across a wide line voltage band — practical for generators running under varying field conditions in construction sites, remote installations, and commercial standby applications. The GAVR-12A genset spare part's wide field resistance acceptance (12–100 ohm) means it covers a broad variety of brushless generator designs within this power class without requiring field winding modifications.

The GAVR-12A generator AVR delivers continuous 4A excitation output with a 7A intermittent capacity for 10 seconds, supporting generators that need short-burst excitation boost during cold starts or load step events. Maximum output is 90Vdc at 240Vac input — well within the field winding voltage requirements of generators in the GAVR-12A's rated operating class.

±1% Voltage Regulation Accuracy: The GAVR-12A automatic voltage regulator holds generator output within ±1% under steady-state conditions with 4% engine governing, protecting connected loads from voltage variation during normal operation.

Wide Field Resistance Range (12–100 Ohm): The GAVR-12A generator AVR accepts field winding resistance from 12 to 100 ohm, making the GAVR-12A genset spare part compatible with a broad range of brushless generator designs without field modification.

Built-In EMI Suppression: The GAVR-12A brushless generator AVR includes internal electromagnetic interference filtering, reducing conducted noise on the excitation circuit — important in applications where sensitive control electronics share the same power source as the generator.

2-Second Soft Start Ramp: The GAVR-12A automatic voltage regulator ramps generator output voltage up over 2 seconds from startup, reducing inrush stress on the excitation winding and connected equipment during each start cycle.

Under-Frequency Roll-Off Protection: The GAVR-12A genset spare part includes under-frequency protection, with the knee point preset at 55Hz for 60Hz systems and 45Hz for 50Hz systems, reducing field current when engine speed falls below the rated threshold.

The GAVR-12A automatic voltage regulator's built-in EMI suppression sets it apart from basic generator AVR units that leave conducted interference filtering to external circuit design. In industrial standby power applications where PLCs and communication equipment share the same source as the generator, unfiltered field-switching noise can introduce interference into control systems. The GAVR-12A genset spare part addresses this with integrated internal filtering directly in the regulator circuit, requiring no additional external components from the installer.

The GAVR-12A's ±7% external voltage adjustment range — via a 1kΩ trimmer — allows field commissioning voltage trim without component replacement. Generator service technicians who need to fine-tune output voltage after installation can do so directly on the GAVR-12A generator AVR without opening the enclosure or touching the generator winding. This adjustability makes the GAVR-12A a practical fit across different generator models within the below-125kW class where rated output voltage may vary slightly between generator nameplate values.

The GAVR-12A brushless generator AVR's thermal drift specification — 0.03% per degree ambient change — ensures output voltage stability in high-ambient generator enclosures. This is a specification often overlooked in sub-125kW generator applications, where canopy-enclosed generator sets can reach 60–70°C internally during summer operation. POPULACE manufactures the GAVR-12A to this thermal performance standard and tests each unit at rated load conditions before shipment.

The POPULACE GAVR-12A brushless generator AVR suits a wide range of below-125kW generator and standby power applications:

Below-125kW Brushless Generator Sets: The GAVR-12A is specifically rated for generator sets below 125kW, making it the right automatic voltage regulator for the majority of small-to-medium commercial and industrial generator sets sold and serviced globally. The GAVR-12A genset spare part covers the most common replacement tier in this market segment.

Construction and Rental Generator Fleets: Rental and construction fleets in the 20–100kW class need a GAVR-12A generator AVR that holds voltage stable under variable and intermittent loads — welding equipment, concrete mixers, and lighting rigs all generate dynamic load profiles that test AVR regulation quality. The GAVR-12A handles this reliably within its rated output specification.

Commercial Standby Power: Small commercial buildings, retail facilities, and agricultural operations using below-125kW brushless generators rely on the GAVR-12A automatic voltage regulator for stable output during load transfer events and sustained running under varying load.

Generator Service and Repair Workshops: Service technicians maintaining aging generator sets need a GAVR-12A genset spare part with clear field resistance compatibility specs and known regulation performance. The GAVR-12A's 12–100 ohm range and documented thermal drift specification make it straightforward to assess fit for a given generator model before ordering.

Generator parts distributors stocking the GAVR-12A automatic voltage regulator serve an active replacement market across the large global installed base of below-125kW brushless generator sets. The GAVR-12A generator AVR's 12–100 ohm field resistance compatibility means a single part number covers broad generator model coverage — reducing SKU count for distributors managing mixed-brand service territories. POPULACE offers the GAVR-12A genset spare part at factory-direct pricing with 2–3 day stocked lead times and 3–7 day production lead times. Pre-shipment testing, 1-year warranty, and flexible shipping via DHL, FedEx, UPS, TNT, and Aramex make the GAVR-12A a low-friction addition to any generator parts catalog.

Q1: What generator sizes is the GAVR-12A compatible with?

The POPULACE GAVR-12A automatic voltage regulator is rated for brushless generator sets below 125kW. The GAVR-12A's 4A continuous output and 12–100 ohm field resistance range cover the excitation requirements of brushless generators in this class.

Q2: What is the sensing input voltage range for the GAVR-12A?

The GAVR-12A generator AVR accepts sensing/power input at 180–260Vac, 1 phase, 2 wire. This input range lets the GAVR-12A genset spare part operate reliably across generator sets with varying terminal voltage under field conditions.

Q3: Does the GAVR-12A have under-frequency protection?

Yes. The GAVR-12A brushless generator AVR includes built-in under-frequency roll-off protection. For 60Hz systems, the GAVR-12A activates protection at 55Hz; for 50Hz systems, the GAVR-12A activates at 45Hz — reducing field current when engine speed falls below the rated threshold.

Q4: How long is delivery for the GAVR-12A?

Stocked GAVR-12A units ship within 2–3 days after payment confirmation. Production volumes take approximately 3–7 days. POPULACE ships the GAVR-12A automatic voltage regulator via FedEx, DHL, UPS, TNT, and Aramex, or free to your forwarder's warehouse in China.
