Diesel Generator AVR: Models Compared for Wholesale

Diesel Generator AVR: Models Compared for Wholesale

When you are sourcing a diesel generator AVR for wholesale distribution, the first thing most buyers focus on is unit price. That is a reasonable starting point. What usually determines the actual procurement value, though, is whether each model is genuinely compatible with the generator configurations your customers are running and whether the AVR board generator you stock can be moved through your inventory without accumulating compatibility returns.

This guide compares the models most frequently requested by wholesale and brand buyers — the SX440, SX460, AS440, R120, and R450 — and explains what actually matters when you are selecting across a range rather than sourcing a single unit.

What a Diesel Generator AVR Does and Why the Model Choice Matters

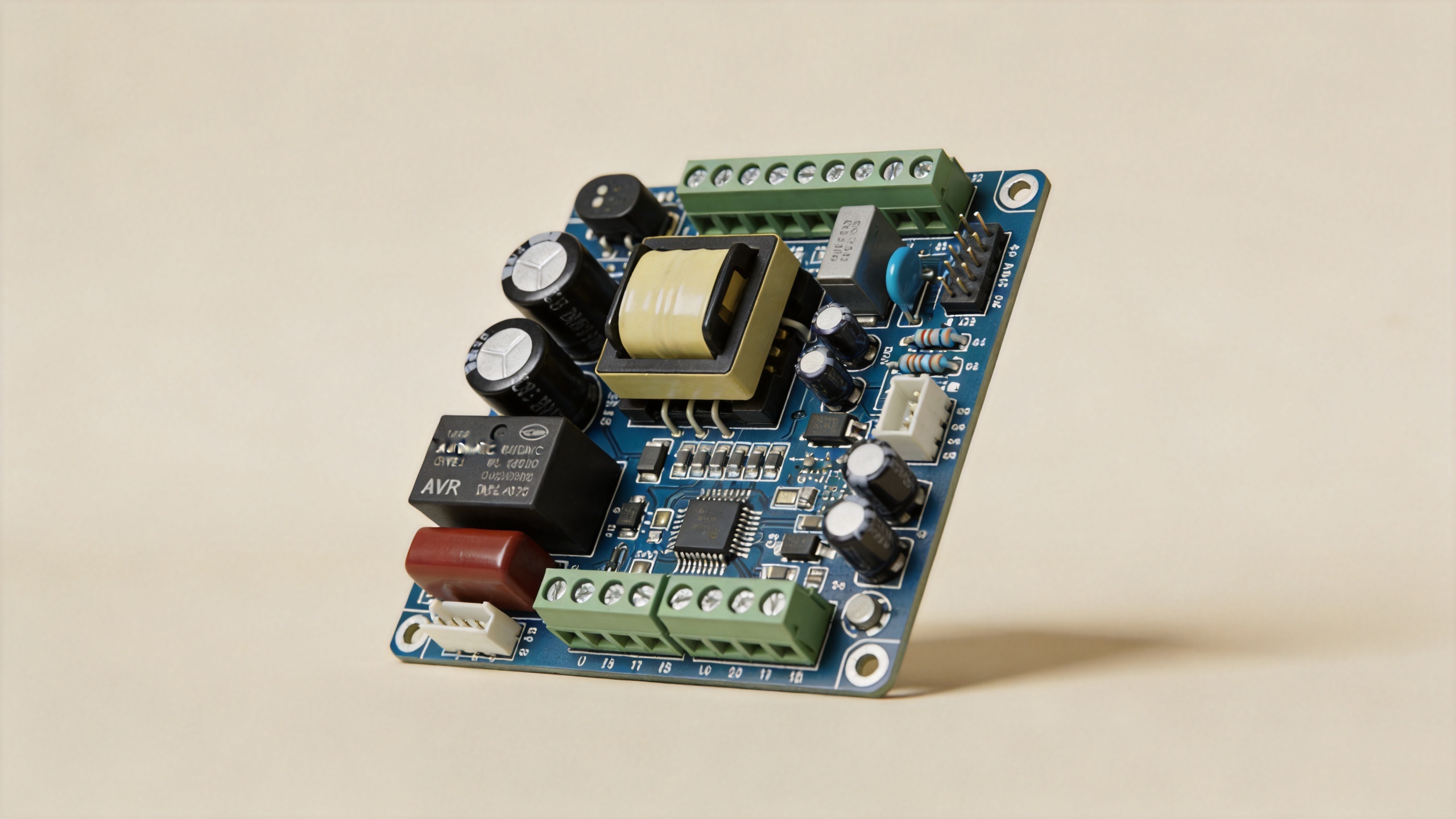

An automatic voltage regulator in a diesel generator set measures the AC output voltage from the alternator's sensing winding and adjusts the excitation current to the field winding to maintain a stable output voltage — typically within ±1–2% of the setpoint across varying load conditions. For a distributor, this mechanism matters because the sensing input voltage range, excitation output capacity, and compatibility with the generator's alternator winding type are all model-specific parameters that determine whether a given AVR will function correctly in a given genset.

The pitfall that gets overlooked most often with AVRs is not the output voltage spec — it is the sensing input range, which varies across generator winding configurations and is often omitted from or buried in catalog descriptions. Two AVRs with the same nominal output voltage can have sensing input ranges that differ by 40V. One may work correctly on a given alternator; the other will produce no regulated output on the first load test.

Model Comparison by Power Range and Application

Understanding which avr dg generator model fits which power segment is the core of effective wholesale stock selection. Each diesel generator AVR model in the range below was designed with a specific alternator class in mind — matching the model to the alternator is the most important step before placing any wholesale order. Here is how the commonly requested models compare:

One important note for wholesale buyers sourcing generator avr sx460 stock: the SX460 is now officially obsolete and has been superseded by the AS440. If your customers are running Stamford-type alternators and have SX460 units in service, the AS440 is the correct current replacement. Stocking SX460 as new inventory introduces supply chain risk that the AS440 avoids.

Procurement Criteria That Matter at Wholesale Volume

Early in the sourcing process, most buyers focus on voltage and frequency ratings when evaluating a diesel generator AVR. After a failed installation return, the focus usually shifts to sensing input type, excitation output current capacity, and control panel connector layout. Over time, buyers managing a parts inventory tend to shift their focus: the compatibility verification question, not the unit price comparison, is where procurement efficiency is actually won or lost.

For wholesale and brand buyers, the relevant criteria are:

• Alternator brand and model compatibility: Each model in this list was designed for a specific class of alternator. Confirm which alternators your customers are running before committing to a batch. Cross-referencing the alternator winding spec with the AVR's sensing input range is the minimum verification step.
• Replacement lifecycle and failure frequency: AVR failure is one of the most frequent causes of generator voltage instability — which means predictable replacement demand. Understanding the typical service life for each model type helps size your stocking position correctly.
• Sensing input range overlap: For R450-type sourcing, the multi-range input (95–140V, 170–260V, 340–528V) provides flexibility across different winding configurations — useful if your customers operate mixed-winding fleets. The R450 also supports parallel generator operation with ±0.5% voltage regulation accuracy.
• Documentation availability: Buyers who have dealt with installation failures consistently reassess compatibility documentation and wiring diagrams as a primary supplier evaluation criterion — not an afterthought. An avr board generator supplier who provides wiring diagrams and installation notes with every order reduces field installation risk and distributor return rates.

R120 and GAVR Series: Options Worth Evaluating for Your Wholesale Range

If you are building or expanding a wholesale AVR range, a few models from Populace Electronic's current lineup are worth evaluating alongside the standard Stamford and Leroy Somer types.

The AVR for Power Generator R120 Diesel Generator Circuit Diagram AVR Digital Genset AVR is designed for diesel gensets with digital controller integration. The R120 circuit diagram documentation is available with the unit — relevant for distributors supplying customers who need installation reference materials for commissioning.

For brushless alternator applications, the GAVR-12A Brushless AVR covers exciter-based brushless configurations that are increasingly common in newer generator installations. Stocking GAVR-12A alongside conventional brush-type AVRs expands the compatible range of gensets your customers can service from a single order.

For broader compatibility across generator brands and winding types, the Universal Generator AVR GAVR-8A Exciter Control Unit is designed as a cross-compatible option for distributors who need flexibility across their customer base without maintaining separate SKU lines for each alternator brand.

Installation and Common Fault Reference

For distributors who supply customers who will handle their own installation, a brief diesel generator AVR fault reference reduces post-sale support calls and return rates for units that were installed correctly but not commissioned correctly:

• No voltage build-up on startup: Check residual magnetism first — a brief DC flash to the field winding is often needed on first installation. Verify the AVR's sensing input is reading a live signal from the correct winding terminals.
• Output voltage unstable or hunting: Check the stability trimmer adjustment on the AVR board. Verify engine speed is stable under load — governor instability often presents as AVR voltage hunting.
• Output voltage too high or too low: Adjust the voltage trimmer. Confirm the sensing input voltage matches the AVR's configured range. A mismatch between winding output and AVR sensing range is the most frequent cause of systematic voltage offset.
• AVR runs hot or burns out quickly: Check excitation output current against the AVR's rated capacity. Over-excitation demand from a damaged or undersized field winding will shorten AVR service life significantly.

If your application runs at a stable load profile, the standard voltage trimmer setting will usually hold within specification. If the load swings frequently — particularly with motor loads cycling on — you would want to verify that the droop and stability response of the specific AVR model is appropriate for that load profile before committing to a large batch order.

Wholesale Sourcing Summary

The model comparison above covers the most commonly requested diesel generator AVR types, but the effective wholesale decision comes down to three practical checks: which alternator brands your customers run, which sensing input range those alternators produce, and whether the AVR supplier provides compatible documentation and pre-sales compatibility confirmation as standard. Sourcing a competitive price on a model that generates returns from specification mismatches does not deliver the margin efficiency wholesale buyers are looking for.

For AVR sourcing inquiries, compatibility confirmation, or pricing on R120, GAVR-12A, or GAVR-8A models, contact Populace Electronic at [email protected] or visit kygenpower.com.
