MX341 AVR: Wiring, Specs and Compatible Generators
If you've spent any time sourcing or servicing brushless generator sets, you've likely come across the MX341 AVR. It's one of the most widely referenced automatic voltage regulators in the industry — originally the standard AVR for Stamford S7 alternators, and now used as a replacement across several generator brands. Understanding what the mx341 avr does, how it's wired, and which generators it fits matters before committing to a volume order for resale or rebranding.
This guide covers the MX341 AVR's core specifications, terminal wiring layout, compatible generator models, and a side-by-side comparison with commonly substituted alternatives like the AS440, SX440, and SX460. For wholesalers evaluating the 15 kva generator avr price bracket and above, we've included sourcing considerations that affect total cost and compatibility risk.
What Does the MX341 AVR Do?
The MX341 is an analogue, two-phase sensing automatic voltage regulator powered by a permanent magnet generator (PMG). Its job is to sense the output voltage of the main generator winding and continuously adjust the excitation current fed to the exciter stator, which controls the main rotor field, to keep output voltage stable regardless of load changes.
Part number E000-23412/1P identifies the standard MX341 configuration. The "2-phase sensing" designation matters here: the unit monitors two of the three generator output phases, which provides better voltage regulation under unbalanced load conditions compared to single-phase sensing alternatives. For diesel genset maintenance engineers, this distinction is worth noting when evaluating replacements for unbalanced three-phase loads common in industrial installations.
MX341 AVR Electrical Specifications
| Parameter | Value |
|---|---|
| Sensing input voltage | AC 190–264 V |
| Power supply input | AC 170–220 V (via PMG) |
| Magnetic field input (max) | DC 90 V (at AC 207 V output) |
| Excitation output current | 4 A continuous |
| Sensing configuration | 2-phase analogue |
| Power source | PMG (permanent magnet generator) |
The PMG power source is an important detail. Unlike self-excited AVRs such as the SX460, the MX341 requires a working PMG to supply regulated input power. If you're replacing an AVR on a generator that lacks a PMG winding, the MX341 will not function correctly — this is a compatibility constraint that causes problems when buyers select based on physical form factor alone rather than excitation type.
MX341 AVR Wiring: Terminal Layout and Connections

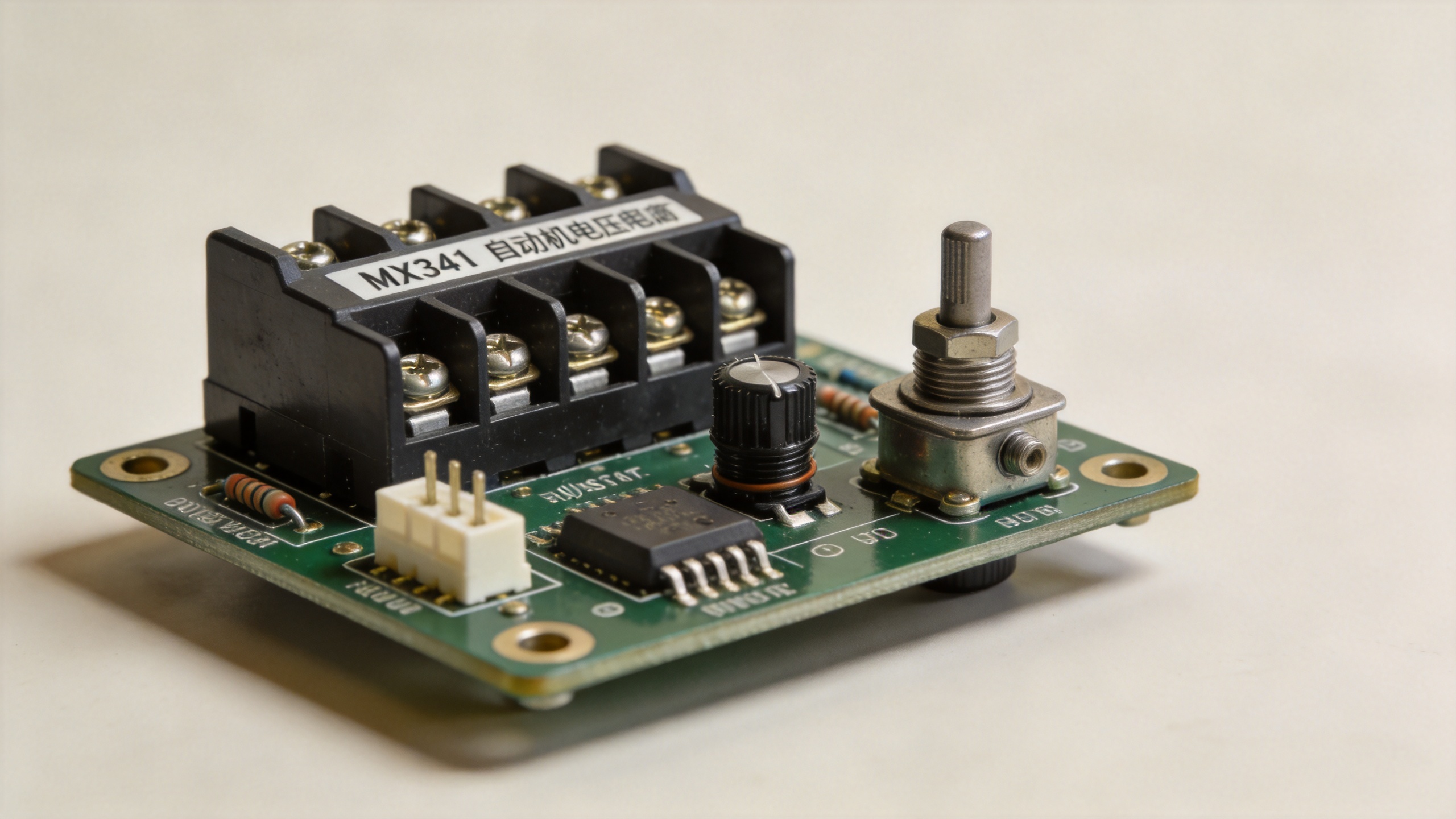

The MX341 has a clearly defined terminal block. Below is the standard terminal assignment:
- Terminals 1 and 2 (E+, E–): Exciter field output — connects to the exciter stator winding
- Terminals 3 and 4 (X, XX): PMG power input — connects to the permanent magnet generator output
- Terminals 5 and 6 (H, H): Volts sensing input — connects to two of the three main output phases
- Terminals 7–8 (F+, F–): Optional droop CT input for parallel operation
One wiring mistake that shows up in field repairs: connecting the PMG leads (terminals 3 and 4) to the main stator output instead of the PMG output. The MX341 expects a separate, isolated PMG feed. Using the main stator voltage as the power input will result in voltage instability or AVR damage on startup — a pitfall worth documenting in any installation checklist your team uses for genset commissioning.
When commissioning, connect a calibrated AC voltmeter (0–300 V) to the output terminals. Set engine speed first, then adjust the VOLTS potentiometer to the rated output.
Compatible Generators and Alternator Models for the MX341 AVR
The MX341 was originally specified for Stamford S7 series alternators, but it is compatible with brushless generator systems from Stamford, Cummins, Marathon, and Grameyer — which makes avr cummins compatibility one of its strongest cross-brand features, provided the alternator includes a PMG and the excitation current demand does not exceed 4 A continuous.
For distributors handling avr cummins replacement orders specifically, it's worth verifying the Cummins alternator series against the 4 A excitation limit before quoting the mx341 avr as a drop-in replacement. Larger Cummins alternator frames may require higher excitation current, in which case alternatives with higher current ratings should be evaluated.
The DST 100 2FA4 alternator configuration, used in certain Stamford-based diesel genset packages, is among the installations where the MX341 has been applied as the factory AVR. Confirm the AVR part number on existing units before ordering bulk replacements for this configuration.
MX341 vs. Other Common AVR Models
| Model | Sensing | Power Source | Excitation Current | Typical Application |
|---|---|---|---|---|
| MX341 | 2-phase analogue | PMG | 4 A | Stamford S7, Cummins, Marathon (PMG equipped) |
| MX321 | Single-phase analogue | PMG | 4 A | Stamford S4 and S5 series alternators |
| AS440 / AVR AS540 | 3-phase digital | Self-excited (AREP) | 6 A | Leroy-Somer and Cummins C-range alternators |
| SX440 | Single-phase | Self-excited | 4 A | Stamford UCI/UCDI series, smaller kVA frames |
| SX460 | Single-phase | Self-excited | 10 A | Stamford P80 and larger frames, no PMG needed |
| R120 | Single-phase digital | Self-excited | Up to 6 A | Multi-brand diesel gensets, mid-range kVA |
The avr as540 — also marketed as the AS440 — is one of the most frequently confused alternatives. Both the mx341 avr and the AS540/AS440 share similar physical mounting dimensions, which leads to incorrect cross-referencing in some supplier catalogs. The critical difference is the power source: the MX341 requires PMG input, while the AS440 operates on AREP self-excitation. Substituting one for the other without checking the alternator's excitation architecture will result in no-build voltage on startup.
Procurement Considerations for Wholesalers and Brand Buyers
For distributors evaluating the 15 kva generator avr price range, three factors drive total cost of ownership: compatibility verification, documentation quality, and batch consistency. The 15 kva generator avr price point is often where wholesale buyers begin comparing aftermarket units across suppliers.
Compatibility verification upfront saves return freight and warranty claims downstream. A supplier that provides pre-shipment confirmation of alternator compatibility, matching the MX341 to your customer's engine and alternator serial, reduces the risk of incorrect units reaching end users. This is particularly relevant for mixed-fleet distributors handling both Stamford and Cummins alternator types.
Documentation quality signals product reliability. An MX341 supplied without a wiring diagram, installation note, or terminal labeling creates downstream problems: your customer's field technician will look up the wiring from an uncontrolled source, increasing the chance of incorrect connection. Sourcing from a supplier that includes product documentation as standard (not on request) reduces installation errors at the end-user level.
For volume orders, request samples before committing to full batch quantities. AVR sensitivity to voltage and temperature varies between aftermarket manufacturers; a unit that passes bench testing at 25°C may behave differently at continuous operating temperature inside a canopied genset enclosure.
Our product line includes AVR options that serve similar application profiles to the MX341 — including the AVR for Power Generator R120 Diesel Generator with circuit diagram documentation included, the GAVR-12A Brushless AVR for brushless genset configurations, and the Universal Generator AVR GAVR-8A suited for lower-kVA exciter control applications. Each comes with complete wiring documentation — which matters when your customers are commissioning in the field without manufacturer support on-site.
Common MX341 Faults and Troubleshooting
Understanding typical failure modes helps distributors advise customers and field teams diagnose issues before calling for a full replacement:
- No output voltage on startup: Most commonly caused by PMG failure or disconnected PMG leads (terminals 3 and 4). Check PMG output voltage first before condemning the AVR.
- Voltage hunting (oscillating output): Usually indicates incorrect STABILITY potentiometer setting or a loose sensing connection at terminals 5 and 6. Tighten sensing connections and adjust stability trim slowly.
- Over-excitation / voltage runaway: Can result from a short in the exciter field winding or a failed internal component on the AVR. Disconnect exciter leads and measure field resistance before replacing the AVR.
- Low output voltage that won't respond to trim adjustment: Check that engine speed is at rated frequency first. A low-speed condition will produce low voltage regardless of AVR setting.
Summary
The mx341 avr is a well-established component in the brushless generator market, with clear specifications and a defined range of compatible alternator systems. For wholesalers and brand buyers, the key procurement discipline is verifying PMG availability in the target alternator before specifying MX341 as the replacement. Model confusion with AS440, SX460, or R120 is common and avoidable with a proper compatibility check at the time of order.
When sourcing in volume, prioritize suppliers who provide documentation, offer compatibility pre-checks, and can maintain consistent product specs across batches. These factors reduce total cost far more reliably than chasing the lowest unit price.
