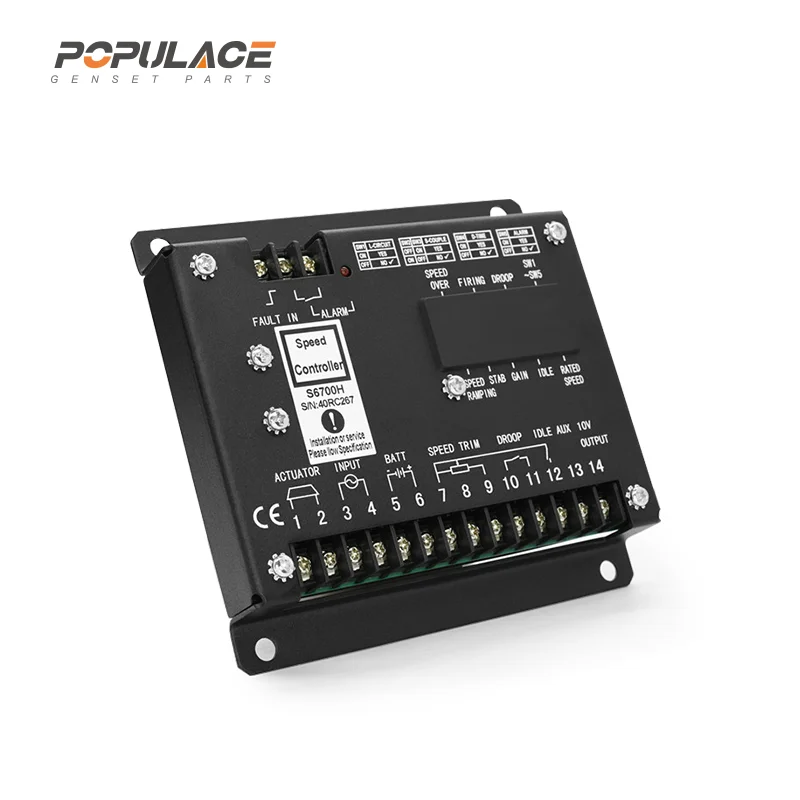

The S6700H governor is a precision electronic speed control unit designed for diesel generator sets and industrial engine applications worldwide. As a professional S6700H governor controller, this unit delivers stable isochronous and droop speed regulation across a wide range of generator configurations. The S6700H governor supports both 12V DC and 24V DC working voltages, making it adaptable to diverse generator control systems. The S6700H governor output current capability spans 2.5 to 10A continuous, providing sufficient actuator drive for commercial and industrial generator sets. Engineered for demanding field environments, the S6700H governor maintains consistent engine speed through advanced electronic feedback control. Generator service technicians and procurement teams worldwide select the S6700H governor for its proven reliability and broad compatibility with diesel engine platforms.

The S6700H governor features a robust electronic architecture that continuously monitors and adjusts fuel actuator position to maintain target engine speed. This S6700H governor controller processes speed sensor signals from 0.5 to 120V RMS, ensuring compatibility with a broad spectrum of magnetic and Hall-effect speed pickups used across diesel engine platforms. The S6700H governor continuous output current of 2.5 to 10A provides reliable actuator drive for standard hydraulic and electric actuator types.

Designed for extreme operating environments, the S6700H governor functions reliably across a temperature range from -40°C to +85°C. This wide thermal range makes the S6700H governor suitable for outdoor generator installations in cold northern climates as well as high-temperature industrial facilities. With relative humidity tolerance up to 95%, the S6700H governor maintains performance integrity in tropical coastal regions and marine-adjacent installations where moisture exposure is unavoidable.

The speed regulation range of the S6700H governor spans 1K to 7.5K Hz, accommodating different engine RPM profiles used in various generator set configurations. The built-in speed trim adjustment of the S6700H governor covers +/-200 Hz, allowing precise field calibration without requiring full unit reconfiguration. Technicians performing periodic maintenance value the S6700H governor for this adjustment capability, which significantly reduces service time during scheduled maintenance visits.

• Dual voltage input: The S6700H governor accepts both 12V DC and 24V DC working voltages
• High continuous output: The S6700H governor delivers 2.5-10A continuous current for actuator drive
• Wide speed frequency range: The S6700H governor operates across the 1K-7.5K Hz speed spectrum
• Precision speed trim: The S6700H governor provides +/-200 Hz adjustment for field calibration
• Extended temperature rating: The S6700H governor operates from -40°C to +85°C without performance loss
• High humidity resistance: The S6700H governor tolerates up to 95% relative humidity
• Broad sensor compatibility: The S6700H governor accepts 0.5-120V RMS speed sensor signals
• Multi-mode governing: The S6700H governor supports isochronous and droop operation modes

The S6700H governor incorporates analog and digital hybrid control technology that provides superior response characteristics compared to conventional mechanical governor designs. The S6700H governor electronic control circuit processes real-time speed feedback and applies proportional-integral control algorithms to minimize speed deviation under load transients. This architecture delivers faster stabilization times and tighter frequency regulation than traditional mechanical governor mechanisms used in older generator installations.

The S6700H governor control system adapts continuously to varying load conditions, maintaining stable speed across partial and full rated operating capacity. Industrial operators consistently select the S6700H governor for critical power applications including data centers, hospitals, manufacturing plants, and telecommunications facilities. The S6700H governor signal processing design minimizes electrical interference sensitivity, ensuring consistent speed regulation in electrically noisy industrial environments. Generator set manufacturers integrate the S6700H governor into their standard control panels due to its verified compatibility and straightforward wiring requirements. Engineers specify the S6700H governor for its combination of reliability, adaptability, and proven field performance across multiple generator platforms.

The S6700H governor serves a diverse range of diesel generator and engine control applications across industrial and commercial sectors. From standby power systems to continuous duty installations, the S6700H governor flexible design accommodates numerous engine types and configurations:

• Stationary diesel generators: The S6700H governor maintains stable frequency output for prime power and standby generator sets
• Mobile power units: The S6700H governor compact form integrates with vehicle-mounted and trailer-based generators
• Marine installations: The S6700H governor humidity and temperature tolerance suits shipboard generator applications
• Industrial process machinery: The S6700H governor controls engine speed in pumps, compressors, and drive equipment
• Telecommunications infrastructure: The S6700H governor supports backup power systems at telecom tower sites
• Mining and construction: The S6700H governor withstands high-vibration and harsh outdoor operating conditions

Generator operators selecting the S6700H governor gain measurable operational benefits that reduce maintenance costs and improve system uptime. The S6700H governor long service life and proven component quality contribute to lower total cost of ownership compared to frequent replacement of inferior speed control units. Distributors and authorized service centers maintain global stocks of the S6700H governor due to its cross-brand compatibility with multiple diesel engine types and straightforward installation process.

In global procurement decisions, the S6700H governor track record speaks for itself. The S6700H governor established market presence across power generation sectors confirms its reliability across multiple years of field deployment. Procurement teams in industrial maintenance consistently choose the S6700H governor as their preferred speed control solution for both replacement projects and new generator system builds. The S6700H governor competitive pricing and reliable supply chain availability make it the logical choice for generator fleet maintenance programs. Service technicians value the S6700H governor for its consistent performance and accessible calibration process, minimizing generator downtime during scheduled service intervals.

Q1: What working voltage does the S6700H governor require?
A1: The S6700H governor operates on 12V DC or 24V DC working voltage, accommodating the most common diesel generator control circuit standards used globally.

Q2: What is the output current specification of the S6700H governor?
A2: The S6700H governor delivers 2.5 to 10A continuous output current, sufficient for driving standard hydraulic and electric fuel actuator types used in diesel engines.

Q3: In what temperature conditions does the S6700H governor operate reliably?
A3: The S6700H governor is rated for operation from -40°C to +85°C, covering cold-climate outdoor installations and high-temperature industrial environments.

Q4: What speed sensor signal input is compatible with the S6700H governor?
A4: The S6700H governor accepts speed sensor input signals from 0.5V to 120V RMS, making it compatible with magnetic pickup and Hall-effect sensor types.

Q5: Does the S6700H governor support both isochronous and droop operation?
A5: Yes, the S6700H governor supports both isochronous constant speed governing and droop variable speed governing, adapting to different generator set load sharing requirements.

Q6: What speed trim range does the S6700H governor provide?
A6: The S6700H governor provides a speed trim range of +/-200 Hz, enabling precise calibration adjustments without requiring full controller reconfiguration.
