Detailed Product Description
An emergency stop device occupies a unique position in the control hierarchy: it is the final manual override when automated systems fail to respond as intended. For diesel generator enclosures, this function carries particular weight. A generator set operating in an outdoor enclosure, a remote telecom site, or a construction compound may be accessed by personnel who are not intimately familiar with the control system. The emergency stop mushroom switch box provides an unambiguous, universally recognized stop command that does not require navigating a controller menu or interpreting fault codes.
The mushroom-head actuator shape is not arbitrary. Compared to a flush push button, the mushroom profile presents a larger surface area that can be struck with the palm or forearm when hands are occupied or when access is obstructed . The red color and contrasting yellow background, where specified, follow established machine safety conventions that signal emergency function without requiring text literacy. For generator enclosures that may be accessed by contractors, fuel delivery personnel, or emergency responders, this visual immediacy supports safe interaction.
The “corrosion resistant” attribute addresses a practical failure mode in generator applications. Enclosures installed outdoors or in coastal, industrial, or agricultural environments face humidity, salt spray, chemical vapors, and temperature cycling. A standard plastic or untreated metal switch box may degrade over time, allowing moisture ingress that compromises contact integrity. The corrosion-resistant construction of this switch box—typically achieved through a die-cast aluminum or polycarbonate housing with sealed gaskets and stainless steel hardware—maintains the internal environment for the contact block across the service life of the generator .
The panel mount configuration means the switch box installs through a cutout in the generator enclosure or control panel face, with the actuator protruding outward and the contact block and wiring secured behind the panel. This arrangement protects the wiring and terminals from direct exposure while presenting the actuator at the operator interface. The mounting depth must be considered during enclosure design; compact switch boxes are available where internal clearance is limited, with some panel-mount units requiring as little as 48mm behind the panel surface .
The internal contact configuration determines how the switch integrates with the generator’s control circuit. Emergency stop devices for generator applications typically use normally closed (NC) contacts that open when the actuator is pressed, breaking the stop circuit and initiating shutdown. The direct opening action requirement—where the NC contact is mechanically forced open by the actuator movement rather than relying on spring pressure alone—is a safety-critical characteristic specified in standards such as EN 60947-5-5 and EN ISO 13850 . For generator control systems, this ensures that the stop command executes even if contact welding or spring failure occurs. Contact configurations may include 1NC, 2NC, or combinations with normally open (NO) auxiliary contacts for status signaling to the generator controller.
Technical Specifications
| tem |
value |
| Place of Origin |
China |
| Brand Name |
Populace |
| Model Number |

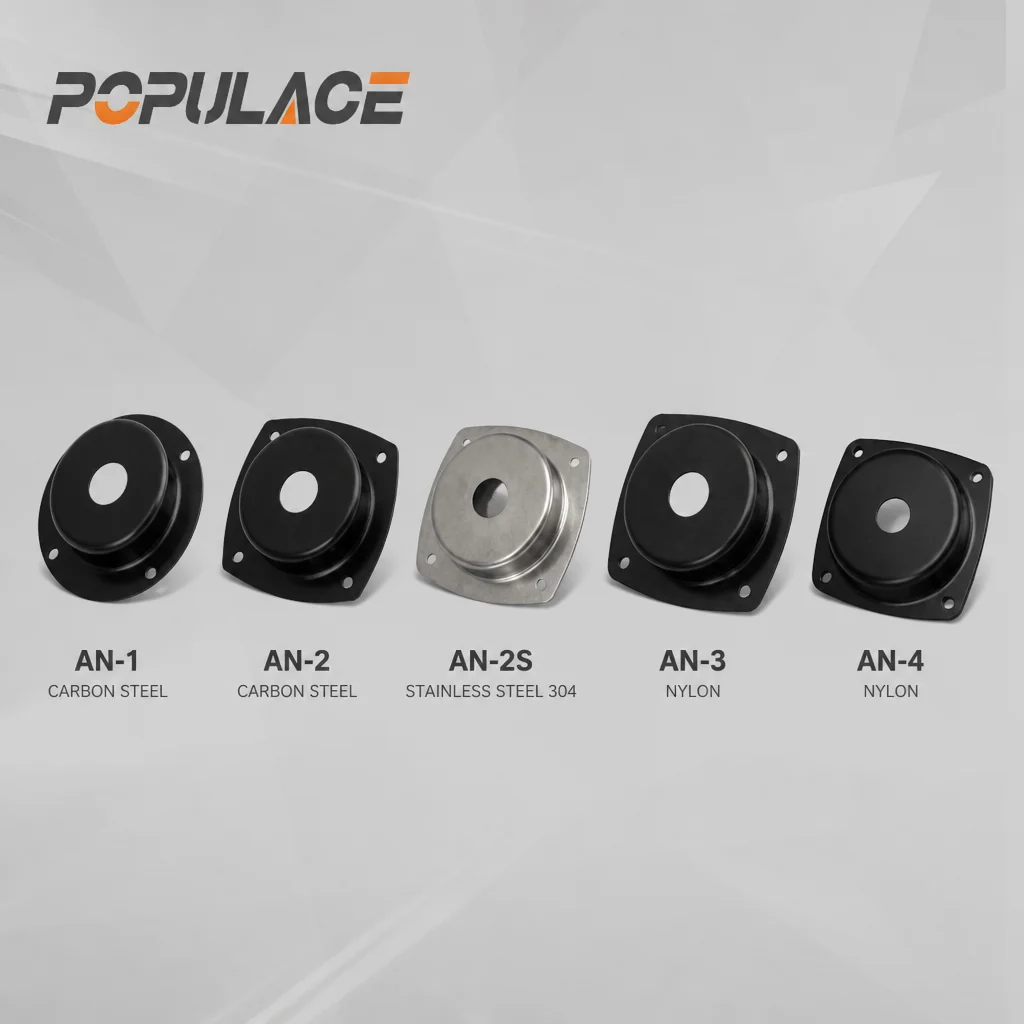

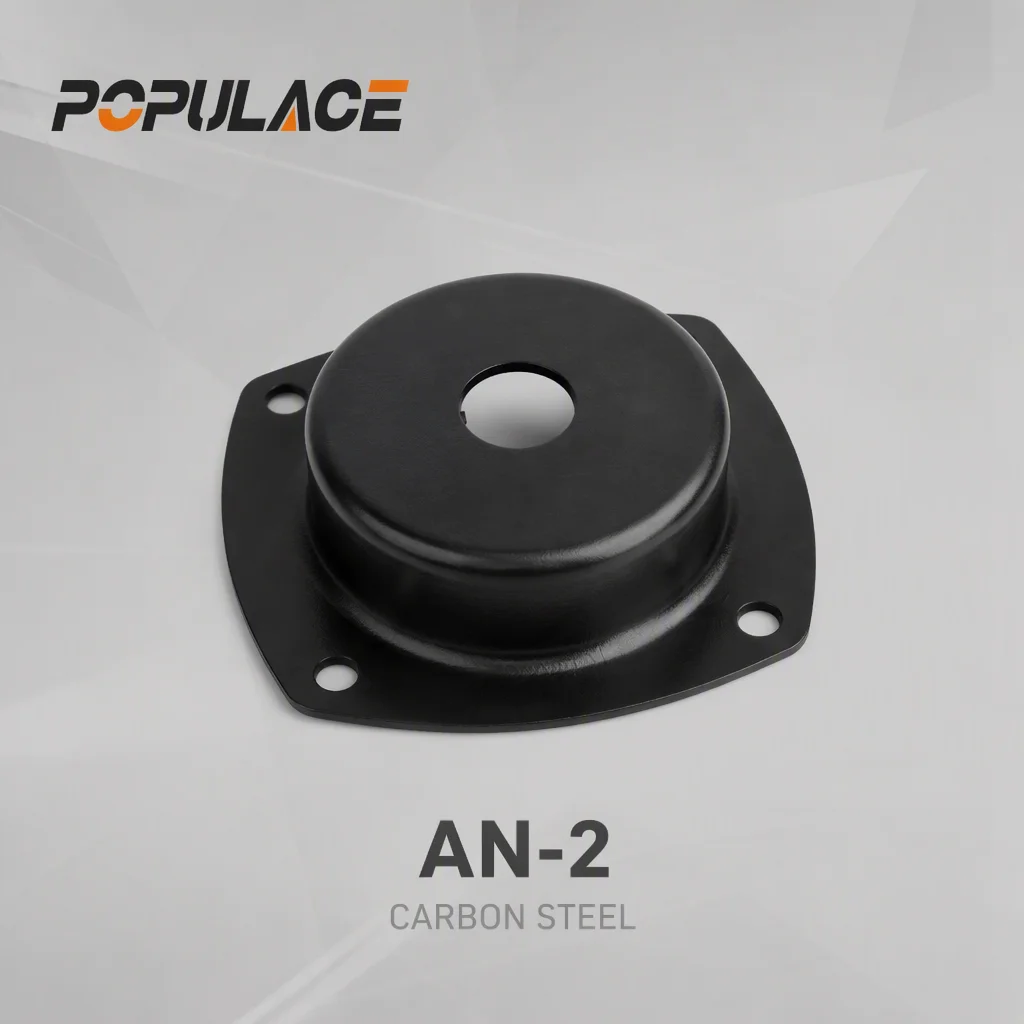

AN-1 AN-2 AN-3 AN-4 |
| Application |
engine parts |
| Type |
diesel engine part |
| generator type |
diesel generator |
Technical Advantages
Safety-Critical Contact Design. The direct opening action requirement for NC contacts distinguishes an emergency stop device from a general-purpose push button. When the actuator is pressed, the NC contact is mechanically forced open regardless of spring condition or contact welding. For generator control circuits, this ensures the stop command executes reliably, supporting compliance with machine safety requirements .
Environmental Protection for Generator Enclosures. Generator canopies and outdoor control cabinets expose internal components to conditions that degrade standard switch boxes. The corrosion-resistant housing and sealed gasket construction maintain the internal environment, reducing the risk of contact fouling from moisture, dust, or corrosion products .
Visual and Tactile Immediacy. The mushroom shape and red color provide recognition at a distance and activation without requiring precise finger placement. In an emergency involving rotating machinery, fuel systems, or electrical faults, the ability to strike the actuator with the palm or arm supports faster response than fumbling for a flush button .
Panel Mount Integration Flexibility. The switch box can be installed on generator enclosure doors, control cabinet faces, or dedicated operator stations. The standard 22.5mm cutout accommodates common panel preparation practices, while compact-depth variants suit enclosures with limited behind-panel space .
Wholesale Configuration Options. For distributor and OEM buyers, contact configuration, reset method, enclosure material, and labeling can be specified to match target market requirements and generator controller interface standards.
Applications
Diesel Generator Enclosure Doors. The primary application for this switch box is mounting on generator canopy access doors, providing an externally accessible emergency stop without requiring the operator to open the enclosure . This positioning supports rapid intervention from outside the equipment.
Generator Control Panels and Switchgear. Panel builders integrate the switch box into generator control cabinets as a supplementary stop device alongside the controller’s internal stop function. The panel mount configuration aligns with standard cabinet fabrication practices.
Remote and Unattended Generator Sites. Telecom shelters, pumping stations, and construction compounds may have generators accessed by personnel with limited training. The universal recognition of the red mushroom actuator supports safe interaction without reliance on site-specific instructions.
Industrial Equipment and Machinery. Beyond generator applications, the switch box serves as a general-purpose emergency stop station for conveyors, pumps, compressors, and other rotating equipment in manufacturing and process environments .
Marine and Offshore Power Systems. The corrosion-resistant construction is relevant for marine auxiliary generators and offshore installations where salt-laden air accelerates the degradation of standard electrical enclosures.
FAQ
Q: What does “direct opening action” mean for an emergency stop switch?
A: Direct opening action means the normally closed contact is mechanically forced open by the actuator’s movement, rather than relying on spring pressure to separate the contacts. This ensures the stop circuit breaks even if the contacts have welded or the spring has weakened. It is a safety-critical requirement for emergency stop devices under standards such as EN 60947-5-5 .
Q: Is this switch box suitable for outdoor generator installations?
A: Yes, when specified with the appropriate protection rating and corrosion-resistant housing. IP65 or IP66 ratings provide dust-tight and water-jet protection suitable for outdoor enclosures. For coastal or highly corrosive environments, confirm the enclosure material and hardware finish with KYGENPOWER sales .
Q: What contact configuration should I choose for a generator stop circuit?
A: Most generator controllers require a normally closed (NC) contact that opens when the emergency stop is activated. A 1NC or 2NC configuration is typical. If the controller also requires a status signal indicating the emergency stop has been pressed, a 1NC+1NO configuration provides both the stop command and the auxiliary signal.
Q: Can the switch box be mounted on a generator enclosure door?
A: Yes. The panel mount configuration is designed for installation through a cutout in enclosure doors or panel faces. The mounting depth must be checked against the clearance behind the door, particularly if the door has internal framing or stiffeners. Compact-depth variants are available where space is limited .
Q: What is the difference between twist-to-release and pull-to-release reset?
A: Twist-to-release requires the operator to rotate the mushroom head to reset the contacts, while pull-to-release requires pulling the actuator outward. Both methods require a deliberate action, preventing inadvertent restart. Twist-to-release is more common in generator and industrial control applications .
Q: Does the switch box require maintenance?
A: Periodic inspection should verify that the actuator moves freely, the reset mechanism functions correctly, and the enclosure gasket remains intact. In generator applications, checking for corrosion or moisture ingress during routine service is advisable. The contact block is not user-serviceable; replace the unit if contact function is compromised.
