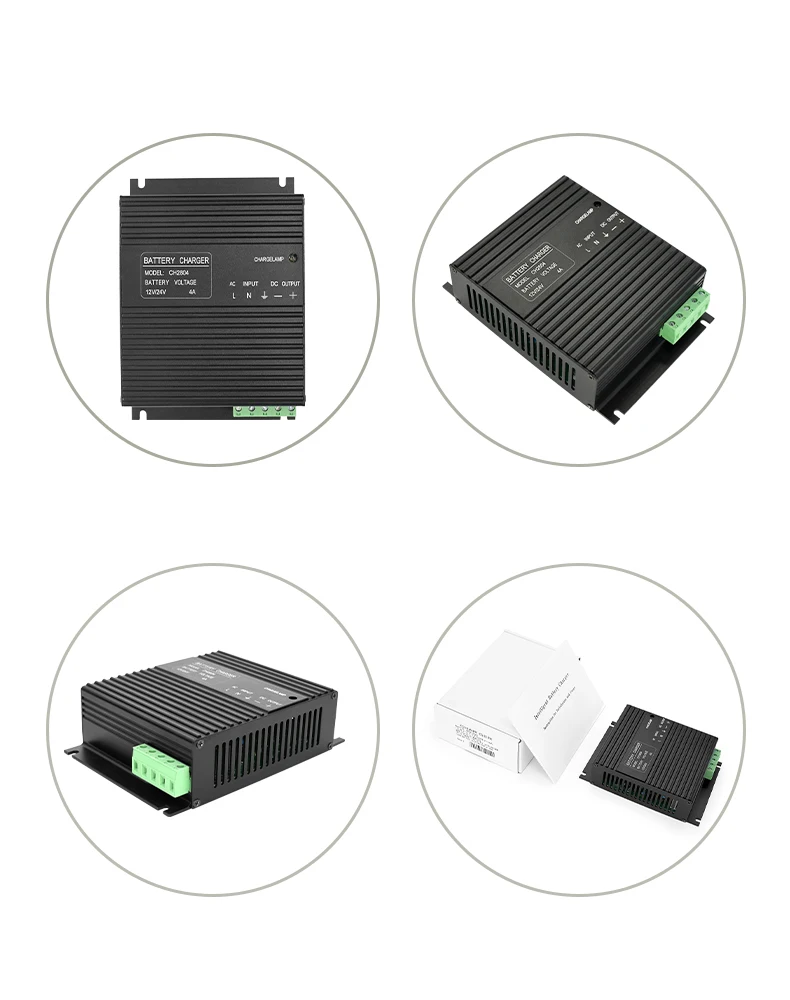

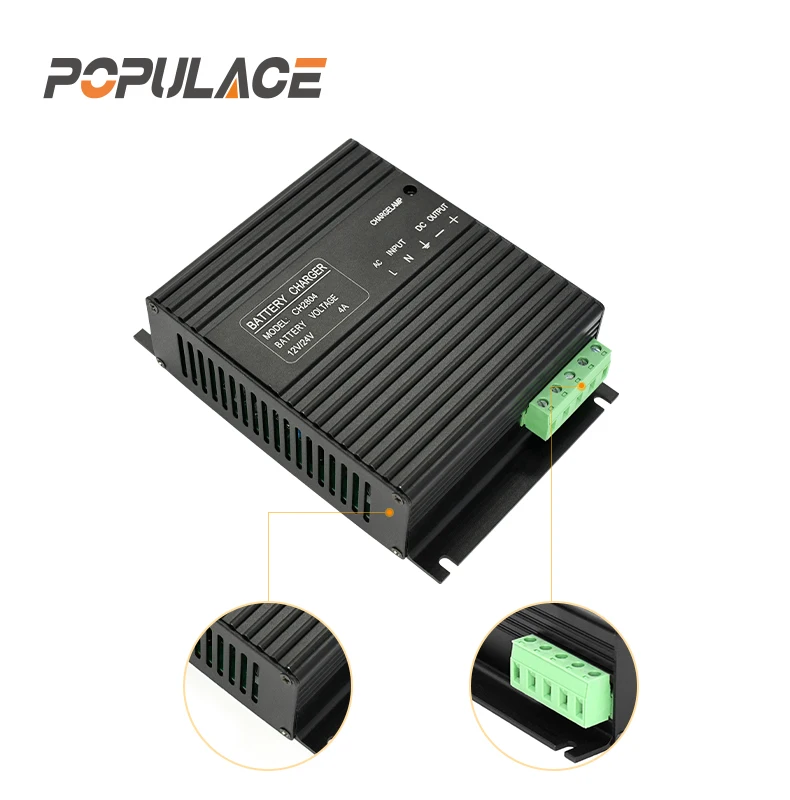

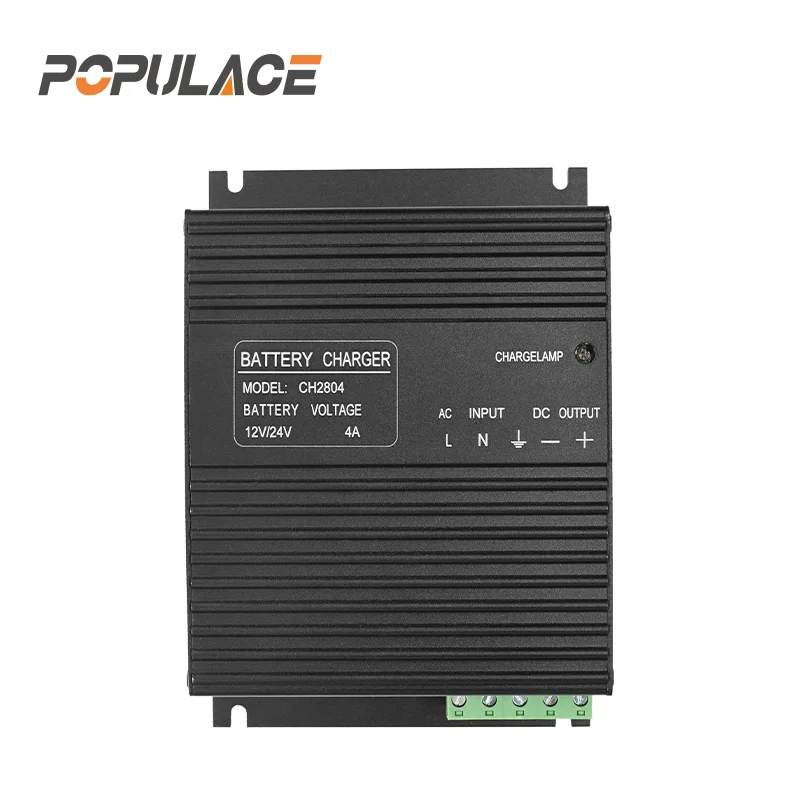

The POPULACE CH2804 is a 12V/24V automatic battery trickle charger built specifically for diesel generator and genset applications. This genset battery charger uses intelligent switching technology to automatically detect the connected battery voltage and adjust its output — covering both 12V and 24V lead-acid starting batteries without manual configuration. Available in 4A, 6A, and 10A charging current variants, the CH2804 battery charger delivers multi-stage charging including constant current, constant voltage, and float maintenance phases. Suitable for industrial, commercial, and backup power applications, this automatic battery trickle charger keeps generator starting batteries in reliable condition for dependable engine start performance.

Operating a diesel generator reliably depends heavily on the condition of its starting battery. A battery that holds insufficient charge can cause startup failures at critical moments — particularly in standby power and backup energy systems where immediate response is essential.

The POPULACE CH2804 genset battery charger is designed to address this challenge directly. Built around modern switching power supply components, it delivers efficient, stable charging performance across a wide input voltage range of 160–277VAC and a frequency tolerance of 20–100Hz. This makes the CH2804 battery charger well suited for environments with variable grid power quality, or where generator output itself is used as the charging power source.

A standout feature of this automatic battery trickle charger is its built-in voltage auto-identification capability. The charger reads the connected battery's nominal voltage — either 12V or 24V — and configures its output automatically. Field technicians working across mixed generator fleets no longer need to manually adjust settings between units, which reduces configuration errors and simplifies routine maintenance in multi-unit industrial generator sites.

Automatic Voltage Detection (12V/24V): Detects and matches battery voltage automatically — no manual switching required between 12V and 24V systems. One CH2804 battery charger handles both voltages used across different generator sizes.

Three-Stage Charging Algorithm: Constant current for bulk charging, constant voltage for absorption, and float mode for long-term maintenance. Each stage transitions automatically based on the battery's charge state.

Short-Circuit Protection: Integrated protection circuitry handles fault conditions to safeguard both the genset battery charger unit and the connected battery bank from damage.

Wide Input Voltage Compatibility: Accepts 160–277VAC at 20–100Hz, supporting variable grid environments and generator-sourced AC power common in off-grid and developing-market installations.

Three Charging Current Options: Available in 4A, 6A, and 10A variants to match different battery capacity ranges. Select based on battery Ah rating for optimized charge times and battery longevity.

Extended Temperature Tolerance: Rated from -40°C to +50°C, this automatic battery trickle charger operates reliably in cold-climate engine rooms and high-temperature tropical generator enclosures alike.

Several design choices in the CH2804 genset battery charger deliver practical benefits for professional service teams and fleet operators.

The switching power supply architecture is more compact and thermally efficient than conventional transformer-based chargers. In generator control panels or engine rooms where space is at a premium, the smaller footprint of this automatic battery trickle charger simplifies installation without compromising charging performance.

Auto-detection of both 12V and 24V systems removes the dual-voltage selection step that causes configuration errors in mixed-fleet maintenance work. Whether servicing 12V agricultural diesel units or 24V industrial prime power generators, a single CH2804 battery charger handles both without reconfiguration — reducing technician error in the field.

The POPULACE CH2804 automatic battery trickle charger serves a broad range of industrial and commercial power environments:

Diesel Generator Sets: Standby and prime power generators in telecom, data center, healthcare, and manufacturing sectors where reliable starting battery maintenance supports uninterrupted operations.

UPS and Backup Power Systems: Float charging for UPS battery banks in commercial buildings and facilities requiring continuous low-current maintenance between discharge cycles.

Marine Generators: Suitable for auxiliary generator batteries aboard vessels and offshore platforms, given its high humidity tolerance and wide input voltage compatibility.

Agricultural and Construction Machinery: Diesel engines in seasonal or remote-area operations benefit from consistent trickle charge during idle periods between operational cycles.

Industrial Backup Power: Manufacturing plants and process facilities that depend on generator reliability for operational continuity across shift changes and planned outages.

For distributors and procurement teams sourcing generator accessories, the CH2804 battery charger delivers clear commercial advantages.

Its dual 12V/24V auto-detection means a single SKU serves customers with mixed generator fleets, reducing distributor inventory complexity. The -40°C to +50°C operating range and 98% humidity tolerance support multi-region deployment without regional product variants — making this CH2804 genset battery charger practical for international distribution across Southeast Asia, the Middle East, and northern European markets simultaneously.

The POPULACE brand has supplied generator components since 2006, giving buyers confidence in manufacturing consistency and product availability. A one-year warranty and factory-direct sourcing support cost-competitive procurement for B2B customers purchasing at volume.

Q1: What battery types is the CH2804 genset battery charger compatible with?

The CH2804 is designed for lead-acid starting batteries, including standard flooded and sealed AGM variants commonly used in diesel generator and industrial power applications.

Q2: Can this automatic battery trickle charger remain connected during extended standby periods?

Yes. The float charging mode is specifically designed for continuous long-term connection. It holds the battery at full capacity during standby without driving overcharge conditions.

Q3: How should I select between the 4A, 6A, and 10A variants?

Choose based on your battery Ah capacity. The 4A model suits batteries under 60Ah; the 6A version covers mid-range units from 60–100Ah; the 10A CH2804 battery charger is appropriate for larger starting batteries above 100Ah.

Q4: Does the charger support generator-sourced AC power as its input?

Yes. The wide input range of 160–277VAC and 20–100Hz frequency tolerance covers both grid supply and generator output, making it usable in off-grid or self-powered site configurations where a utility connection is unavailable.
