The ADC electric actuator series is a high-performance diesel engine speed control solution designed for generator and industrial power applications. Each ADC electric actuator connects directly to the fuel injection pump, providing precise electronic control of engine speed and fuel delivery. The ADC electric actuator product line includes four model series: ADC100, ADC120, ADC175, and ADC225, all available in 12V and 24V supply options. These ADC electric actuator units from POPULACE combine robust construction with fast response characteristics. Whether you need a compact ADC electric actuator for small inline pumps or a heavy-duty ADC electric actuator for multi-plunger systems, this ADC electric actuator series delivers reliable governor performance.
The ADC electric actuator is a rotary fuel control device designed to replace the mechanical governor on diesel injection pumps. Installing an ADC electric actuator on the fuel pump creates an optimized, long-life fuel control system with electronic speed regulation. The ADC electric actuator receives a control signal from the engine controller and translates it into precise rack movement, maintaining consistent engine speed under varying loads.

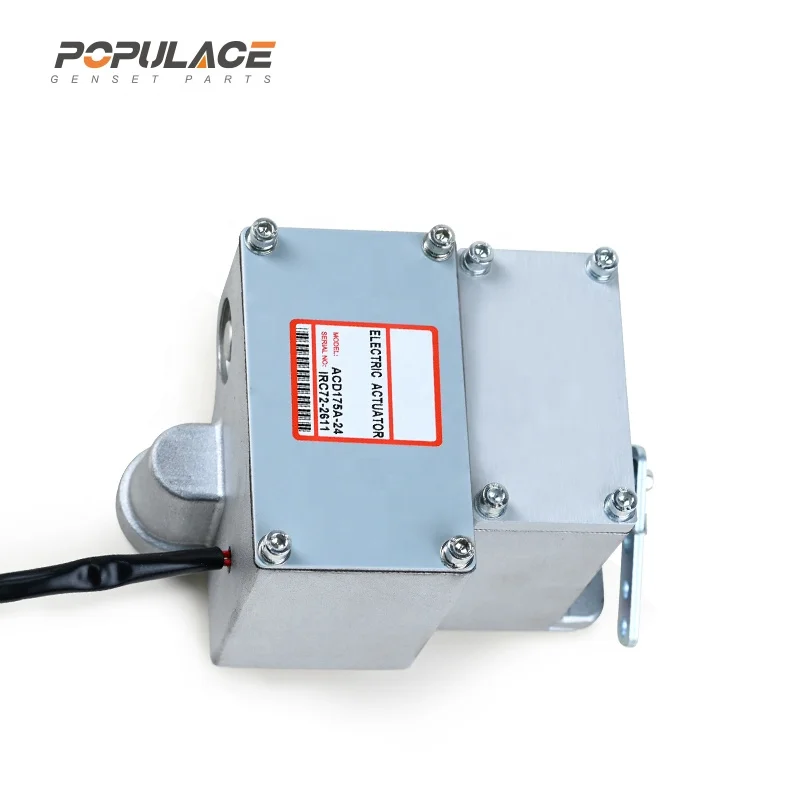

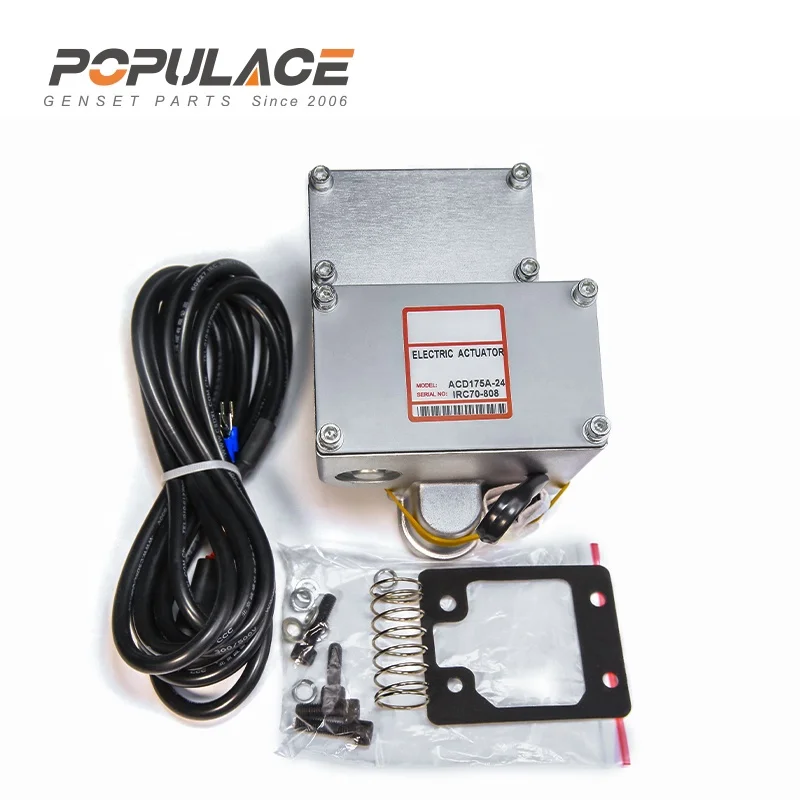

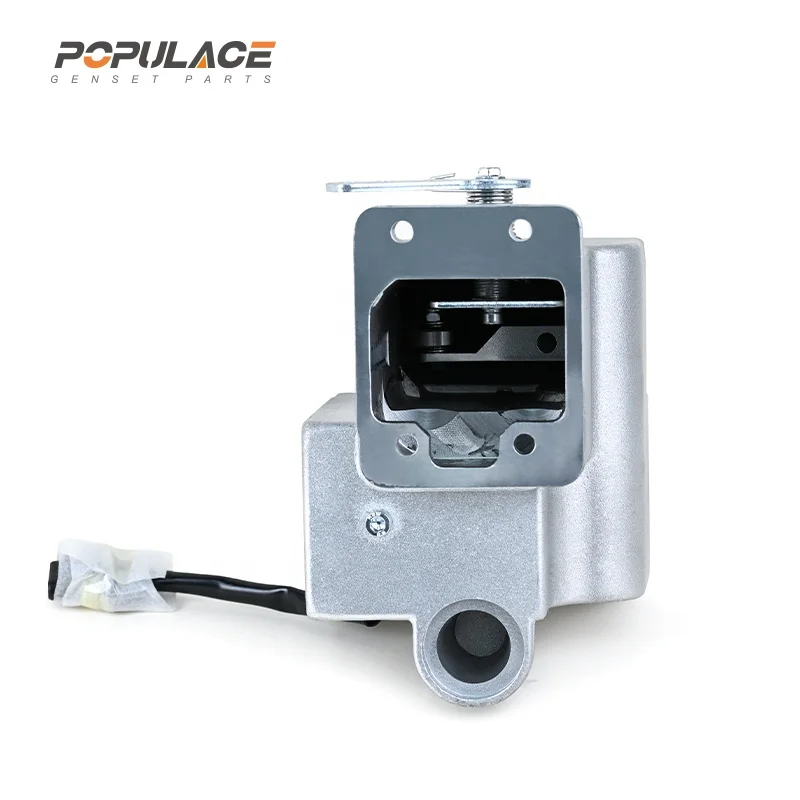

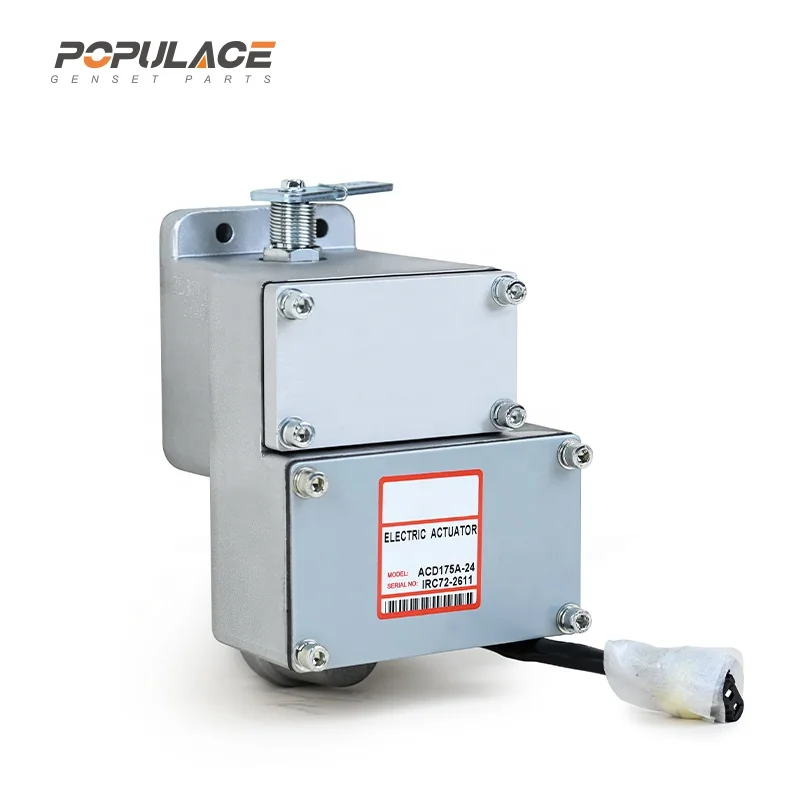

The ADC100 ADC electric actuator provides a direct-fit solution for Stanadyne 'D' series injection pumps. The ADC120 ADC electric actuator is engineered for engines up to 150 hp, delivering 1.0 lb-ft (1.35 N-m) of torque. The ADC175 ADC electric actuator mounts directly on Bosch 'P' and 'A' size pumps, incorporating a manual fuel shutoff mechanism and a Packard connector. The ADC225 ADC electric actuator handles multi-plunger fuel pumps and carburetors, producing 2.2 lb-ft (3.0 N-m) torque with 25-degree rotation and less than 45 msec response time. Each ADC electric actuator is available in 12V and 24V supply voltages.
The ADC electric actuator body uses sealed coil construction with a robust housing that withstands diesel engine vibration and temperature extremes. When paired with a compatible electronic governor controller, the ADC electric actuator delivers a complete, optimized fuel management system for any diesel engine application.
The ADC electric actuator range is defined by the following performance and design features:
The table below provides full specifications for each ADC electric actuator model. Select the ADC electric actuator series that matches your pump type and torque requirement.
| Series | 100 series | 120 Series | 225 Series | 175 Series |
|---|---|---|---|---|
| Model | ADC100-12 or -24 | ADC120S-12 or -24 | ADC225S-12 or -24 | ADC175-12 or 24V |
| Features | For Stanadyne 'D' Series Pumps | Rotary Actuators, For Engines up to 150 hp, 1.0 lb-ft [1.35 N-m] Torque, For Small Inline Fuel Pumps or Carburetor | 2.2 lb-ft [3.0 N-m] Torque, 25° Rotation, < 45 msec Response, For Multi-Plunger Fuel Pumps & Carburetors | For Bosch 'P' and 'A' Pumps, Connects Directly to the Fuel Rack, Manual Shut-Off Mechanism, Packard Connector |
The ADC electric actuator delivers clear technical advantages over conventional mechanical governors. The ADC electric actuator provides faster response to load changes, reducing speed droop and improving voltage stability in generator applications. Unlike mechanical governors, the ADC electric actuator requires no spring tension adjustments or mechanical linkage wear compensation over its service life.
The sealed housing of the ADC electric actuator protects internal coil windings from diesel fuel vapors, oil mist, and dust, extending service intervals. The ADC electric actuator coil design maintains consistent torque output across a wide temperature range, from cold-start conditions to full operating temperature. This reliability makes the ADC electric actuator a preferred replacement component in high-reliability power systems.
When integrated with an electronic control module, the ADC electric actuator supports isochronous governing and load sharing between parallel generators. The ADC electric actuator accepts a proportional control signal, enabling smooth speed transitions during load pickup and rejection. The complete system built around the ADC electric actuator achieves tighter speed regulation than equivalent mechanical solutions across the full operating range.
The ADC electric actuator serves a broad range of diesel engine applications across industrial, commercial, and mobile platforms. Industrial standby generators use the ADC electric actuator for reliable automatic start and precise load pickup. Prime power generators in remote locations depend on the ADC electric actuator for continuous frequency stability. Agricultural machinery with diesel-powered pumps benefits from the ADC electric actuator's precise fuel metering. Marine diesel engines and construction equipment rely on the ADC electric actuator for speed stability in demanding conditions. OEM generator manufacturers integrate the ADC electric actuator into new engine assemblies for consistent factory-level performance. Wherever diesel engines require electronic speed control, the ADC electric actuator provides a proven, cost-effective solution.
Sourcing the ADC electric actuator series provides clear commercial benefits for distributors, OEM manufacturers, and aftermarket parts suppliers. The ADC electric actuator family covers multiple injection pump platforms within a single product line, reducing SKU count while serving diverse customer requirements. Each ADC electric actuator offers a direct-fit upgrade replacing worn mechanical governors, cutting end-user downtime and service costs. The 12V/24V availability of the ADC electric actuator broadens market coverage across different electrical standards. Long service intervals for the ADC electric actuator reduce warranty claims and improve customer retention. For generator parts distributors, the ADC electric actuator is a high-demand, repeatable item with strong aftermarket pull and consistent resale margins.
Q: What is the difference between the ADC120 and ADC225 ADC electric actuator models?
A: The ADC120 ADC electric actuator targets engines up to 150 hp and produces 1.0 lb-ft (1.35 N-m) torque, designed for small inline fuel pumps and carburetors. The ADC225 ADC electric actuator is a higher-torque unit producing 2.2 lb-ft (3.0 N-m) with 25-degree rotation and under 45 msec response, suited for multi-plunger pumps and larger engines.
Q: Does the ADC175 ADC electric actuator support manual fuel shutoff?
A: Yes, the ADC175 ADC electric actuator includes an external shutoff lever for manual override of the actuator control. This ADC electric actuator model also provides an adjustable internal maximum fuel limit to safeguard the engine from over-fueling.
Q: Which controller is compatible with the ADC electric actuator?
A: The ADC electric actuator works with standard electronic governor controllers that output a proportional DC signal. Contact our technical team to confirm the correct ADC electric actuator model and matched controller for your engine and pump combination. A well-matched system ensures the ADC electric actuator delivers optimal speed regulation. Note that each ADC electric actuator is available in 12V and 24V, so confirm your system voltage before ordering the ADC electric actuator.
